BX-L-PL 830 G15 60W 12V 5X1 OSRAM
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | BX-L-PL 830 G15 60W 12V 5X1 OSRAM |
| Brand | OSRAM |
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| ETIM | EC000996 |

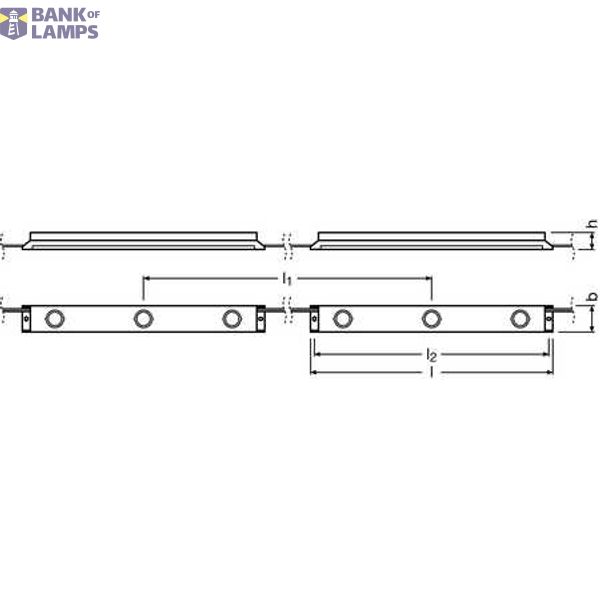

| Width | 35 mm |
| Diameter | 0 mm |
| Length | 300 mm |
| Degree of protection (IP) | IP66 |
| Lamp voltage | 12 V |
| Lamp power | 60 W |
| Luminous flux | 430 lm |
Other Technical data
| Shape | Other |
| Connection type | Wire |
| Voltage type | DC |
| Energy efficiency class | A |
| Luminous intensity | 0 cd |
| Suitable for traffic lights | No |
| Suitable for variable road signs | No |
| Suitable for rail traffic | No |
| Suitable for matrix information boards | No |
| Colour of light according to EN 12464-1 | Warm white <3300 K |
| Number of LEDs | 3 |
| Average nominal lifespan | 50000 h |
| Suitable for general lighting | Yes |
| Suitable for constant current | No |
| Suitable for constant voltage | Yes |
| Operating current | 5 mA |
| External driver required | Yes |
Description
CBP_02.00 Product family benefits, all [calc.]: Uniform illumination thanks to optimized elliptical lenses. Click and Play: quick and easy click-in of the LED modules, no tools needed. Excellent module efficacy. Very long lifetime. 5 year guarantee. CBP_01.00 Product family features, all [calc.]: Connected with flexible cables. Type of protection (modules): IP66. CE marked. CBP_03.00 Areas of applicat, all [calc.]: Permanent outdoor use in enclosed light boxes. Signage and illuminated advertising. Illumination of single and double-sided light boxes. Wallwashing, cove lighting. CBP_08.00 Equipment / Acces, all [calc.]: Several types of OPTOTRONIC© 12 V power supplies available. BoxLED© mounting profile BX-MP.
