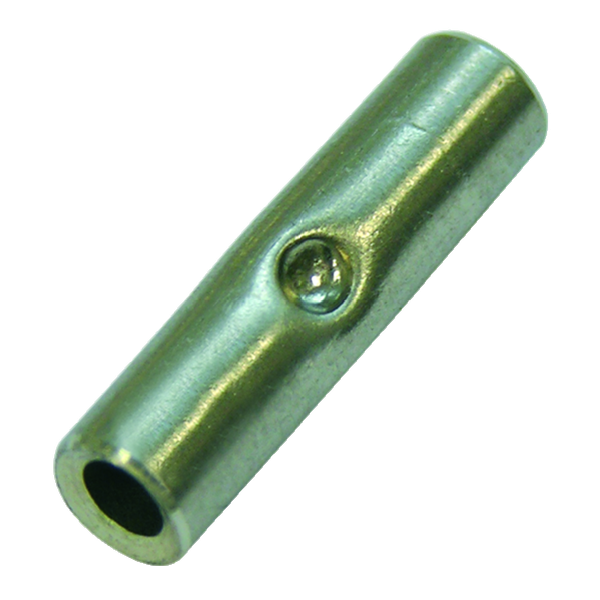

Butt connector pure nickel 0.5-1
Order only
Minimal order quantity: 100
Price (excl. VAT):
1,84 €
Subtotal: 184,00 €
MOQ: 100
EAN: 4011923101329
MPN: 292596
Box: 100
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Butt connector pure nickel 0.5-1 |
| Brand | Haupa |
| Categories |
Cable Crimps
|
| Country of origin | DE |
| Harmonized System Code | 8536 9010 00 |
| Model | Standard version |
| Type of connection | Percussion connector |
| Surface protection | Bare |
| Insulation | None |
| Oil stop/centre bar | No |
| For pull protected connections | No |
| Voltage level | Up to 10 kV |
| Material | Nickel |
| Number of branches | 2 |
| Nominal cross section | 0.5-1 mm² |
| Suitable for fine strand conductors | No |
| Suitable for flat conductors | No |
| Suitable for high temperatures (to 650 °C) | Yes |
| Suitable for insulated varnish | No |
| Suitable for solid conductors | No |
| Suitable for stranded conductors | Yes |
| Suitable for round conductors | Yes |
| Sleeve form | Short |
Packing details
| Packing level 1 | 4011923101329 |
Description
Stootverbinders uit zuiver nikkel materiaal: nikkel temperatuurbestendigheid tot 500° C
