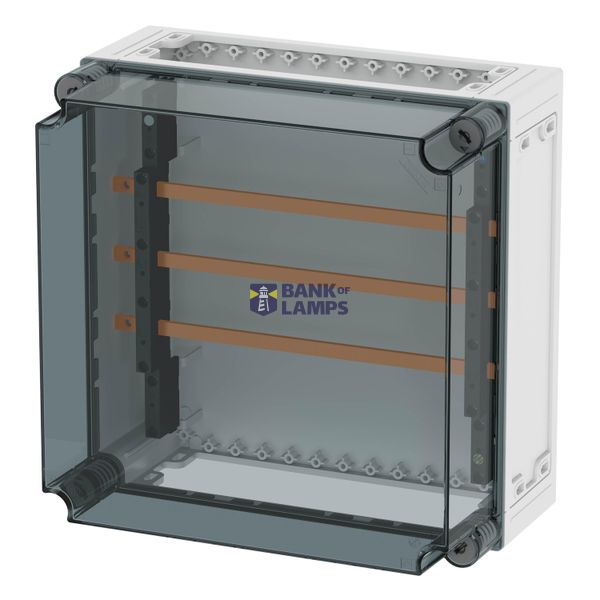

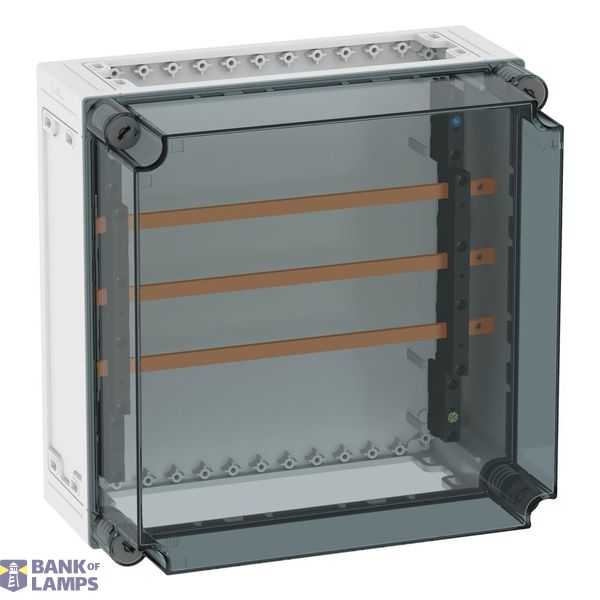

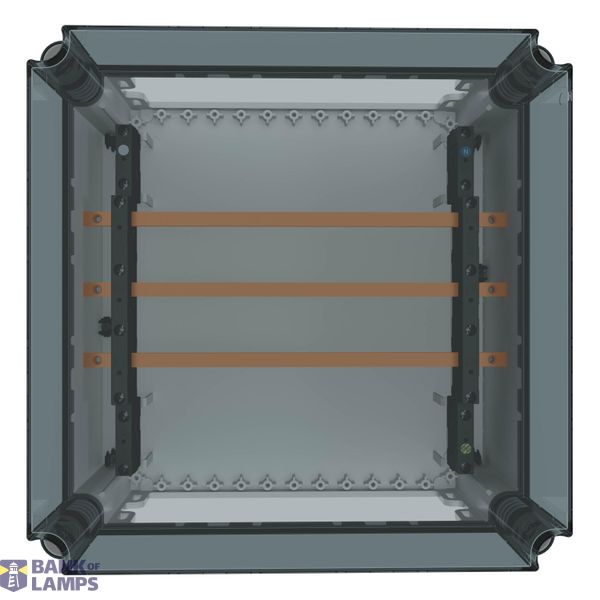

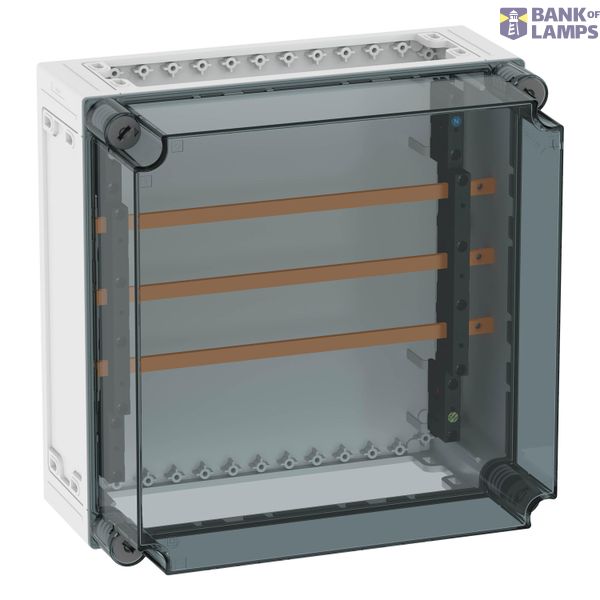

Busbar panel enclosure with transparent cover, 160A, 3-pole
Order only
EAN: 9010653054887
MPN: EP-501508
Package: 1
Price (excl. VAT)
214,34 €
per unit
MOQ: 1
EDT to our warehouse: 4-6 weeks
Price valid until 31.12.26 or while in stock
Technical Information
| Item condition | New |
| Manufacture name | Busbar panel enclosure with transparent cover, 160A, 3-pole |
| Brand | EATON |
| Categories |
Busbar Systems & Accessories
|
| Country of origin* | FI |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 3926 9097 00 |
| ETIM | EC002274 |
| Width | 375 mm |
| Height | 375 mm |
| Depth | 225 mm |
| Housing material | Plastic |
| Busbar distance | 60 mm |
| Rated current rail system | 160 A |
| Equipped with busbar | Yes |
Packing details
| Packing level 1 | 9010653054887 |
Other Technical data
| Mounting method | Surface mounted (plaster) |
| Extension possible | Yes |
| With transparent cover | Yes |
| Number of poles | 3 |
| Short-circuit breaking capacity (Icw) | 15 kA |
| Degree of protection (IP) | IP65 |
| Degree of protection (NEMA) | Other |
Downloads
Description
Busbar system housing with transparent cover, 3-pole, 160 A, carrier included for N+PE for retrofitting, with CU rails L1/L2/L3: 12 x 5 mm, N: without, PE: without, without terminals, for individual fitting.
