Busbar 1P+N 2P RCCB + 3 MCB + F (4 pcs)

Name: Busbar 1P+N 2P RCCB + 3 MCB + F (4 pcs)
Brand: Schneider Electric
Availability: PreOrder

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Busbar 1P+N 2P RCCB + 3 MCB + F (4 pcs)
Brand	Schneider Electric
Country of origin*	IT
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
ETIM	EC000215
Insulated	Yes
Rated permanent current Iu	63 A
Number of poles	2

Packing details

Packing level 1

3606481929600

Other Technical data

Number of phases	1
Cross section	0 mm²
Length	126 mm
Conditioned rated short-circuit current Iq	0 kA
Width in number of modular spacings	0
Rated surge voltage	0 kV
Type of electric connection	Pin
Rated short-time withstand current lcw	0 kA
Suitable for devices with auxiliary switch	No
Suitable for devices with N-conductor	Yes
Suitable for number of devices	4
Max. rated operation voltage Ue	230 V
Module width	0 mm

Description

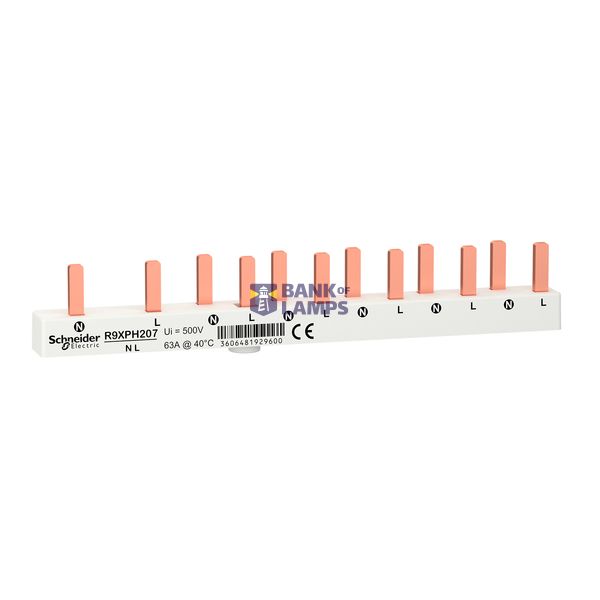

This product is a Resi9 horizontal comb busbar 7 modules with 18 mm module width per way. It is dedicated to 1P+N bottom installations. The length is 126mm.The total number of modules of 18mm is 7. The distance between each way is 18mm. The Ie rated operational current at 40°C is 63A. The Isc short circuit current is compatible with the breaking capacity of Schneider Electric circuit breakers. The Ui rated insulation voltage is 500VAC. The Ue rated operational voltage is 230VAC phase to neutral. The color of the device is white (RAL9003).
