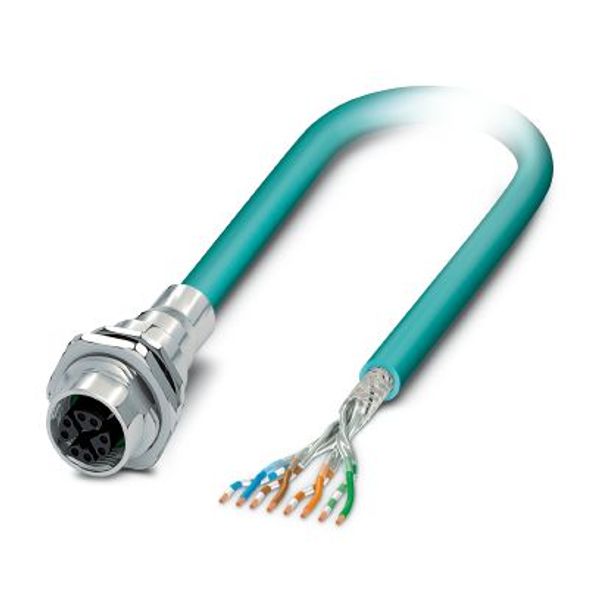

VS-FSBPXS-OE-94F/0,5 - Device connector, rear mounting
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
24,82 €
per pcs
EAN: 4046356692618
MPN: 1424135
Box: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | VS-FSBPXS-OE-94F/0,5 - Device connector, rear mounting |
| Brand | Phoenix Contact |
| Categories |
Circular Connectors
|
| Country of origin | DE |
| Harmonized System Code | 8544 4290 00 |
| Rated voltage | 50 V |
| Cable length | 0.5 mm |
| Number of poles | 0 |
| Housing material | Other |
| Operating temperature | -25-85 °C |
| Type of plug-in contact, outer side | None |
| Degree of protection (IP), mounted | Other |
| Rated current In | 0 A |
Packing details
| Packing level 1 | 4046356692618 |
Other Technical data
| Core cross section | 0 mm² |
| Ambient temperature | 85 °C |
| Inflammability class of insulation material according to with UL94 | V0 |
| With shield connection | Yes |
| Material of contact surface | Other |
| Min. number of insertion cycles | 100 |
| Number of power contacts | 0 |
| Number of control contacts | 0 |
| Screw-in thread | M12 |
Description
Device connector, rear mounting, Ethernet CAT6A (10 Gbps) CAT6A, 8-position, PUR, water blue RAL 5021, shielded, Flush-type female connector, straight, M12-SPEEDCON, coding: X , on free cable end, Rear mounting, M16 x 1.5, Bus line, cable length: 0.5 m, Ethernet 10 Gbit, Alternative product in accordance with RoHS II without Exemption 6c (Pb <0.1%) item no.: 1237433
