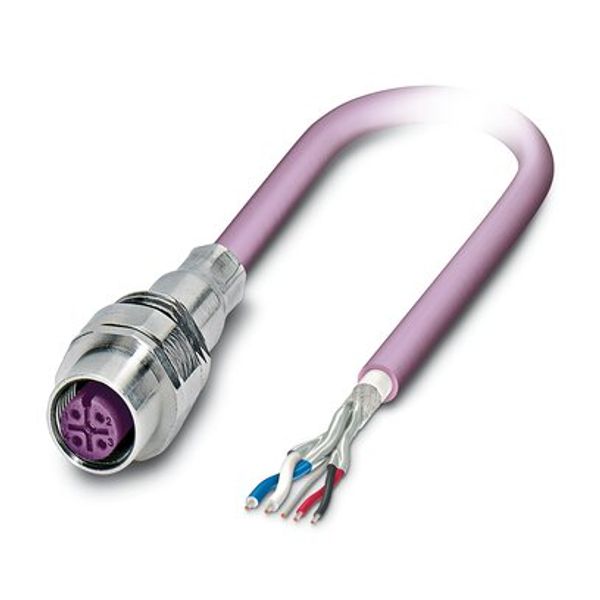

SACCEC-M12FS-5CON-M16/10,0-920 - Device connector front mounting

Order only

Price (excl. VAT):

45,81 € per pcs

This price is valid until 24.12.25

EAN: 4046356022453

MPN: 1525717

Box: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	SACCEC-M12FS-5CON-M16/10,0-920 - Device connector front mounting
Brand	Phoenix Contact
Categories	Circular Connectors
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8544 4290 00
Mounting method	Front mounting
Rated voltage	48 V
Cable length	10 mm
Number of poles	0
Housing material	Other
Operating temperature	-25-85 °C
Type of plug-in contact, outer side	None
Degree of protection (IP), mounted	Other
Rated current In	0 A

Packing details

Packing level 1

4046356022453, 4046356022453

Other Technical data

Core cross section	0 mm²
Ambient temperature	85 °C
Inflammability class of insulation material according to with UL94	V0
With shield connection	Yes
Material of contact surface	Other
Min. number of insertion cycles	0
Number of power contacts	0
Number of control contacts	0
Screw-in thread	M12

Description

Bus system flush-type socket, DeviceNet/CANopen, 5-pos., M12, shielded, A-coded, front/screw mounting, with M16 thread, can be positioned, with 10 m bus cable, 2 x 0.2 mm²; 2 x 0.32 mm²
