SACCEC-M12FSB-5CON-M16/1,0-900 - Device connector front mounting

Order only

Price (excl. VAT):

22,34 € per pcs

This price is valid until 24.12.25

EAN: 4017918982669

MPN: 1529755

Box: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	SACCEC-M12FSB-5CON-M16/1,0-900 - Device connector front mounting
Brand	Phoenix Contact
Categories	Circular Connectors
Country of origin	DE
Harmonized System Code	8544 4290 00
Rated voltage	48 V
Cable length	1 mm
Number of poles	0
Housing material	Other
Operating temperature	-25-85 °C
Type of plug-in contact, outer side	None
Degree of protection (IP), mounted	Other
Rated current In	0 A

Packing details

Packing level 1

4017918982669, 4017918982669

Other Technical data

Core cross section	0 mm²
Ambient temperature	85 °C
Inflammability class of insulation material according to with UL94	V0
With shield connection	Yes
Material of contact surface	Other
Min. number of insertion cycles	100
Number of power contacts	0
Number of control contacts	0
Screw-in thread	M12

Description

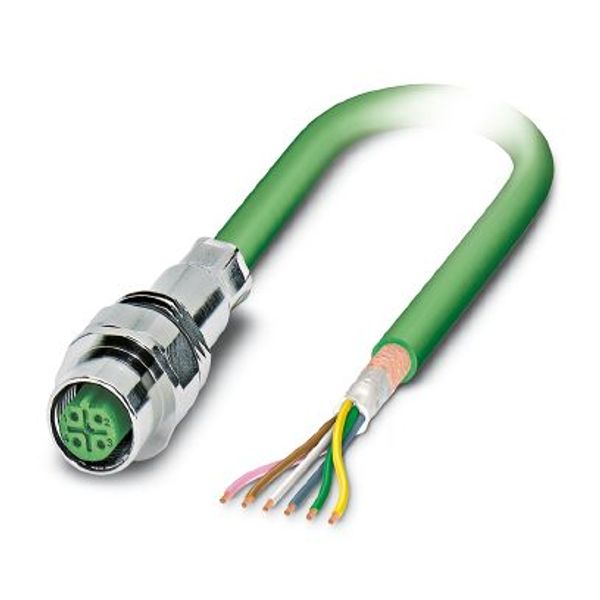

Bus system flush-type female connector, INTERBUS, 5-pos., M12, shielded, B-coded, front/screw mounting with M16 thread, can be positioned, with 1 m bus line
