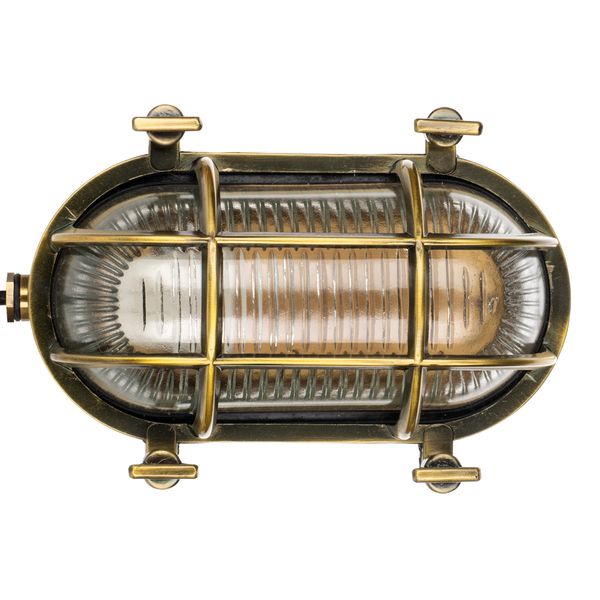

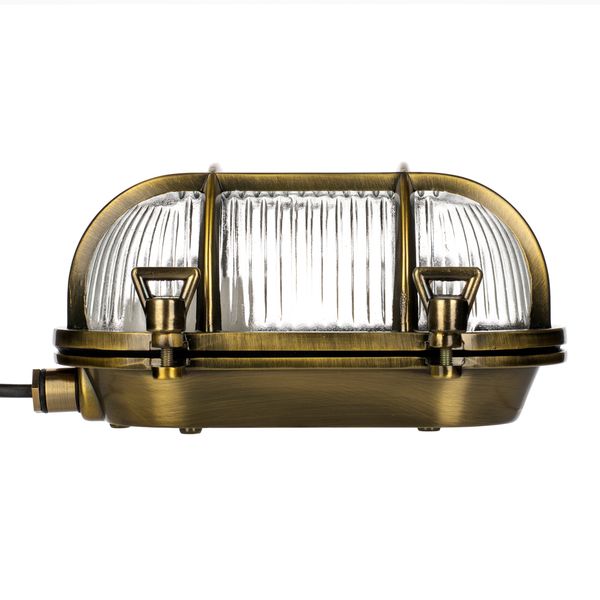

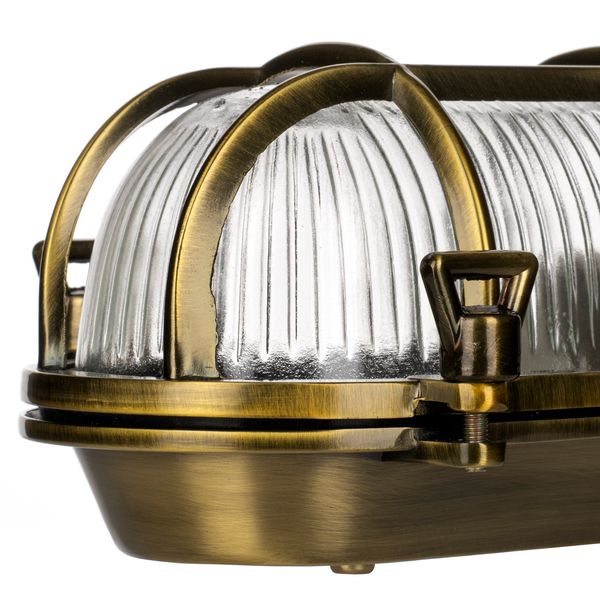

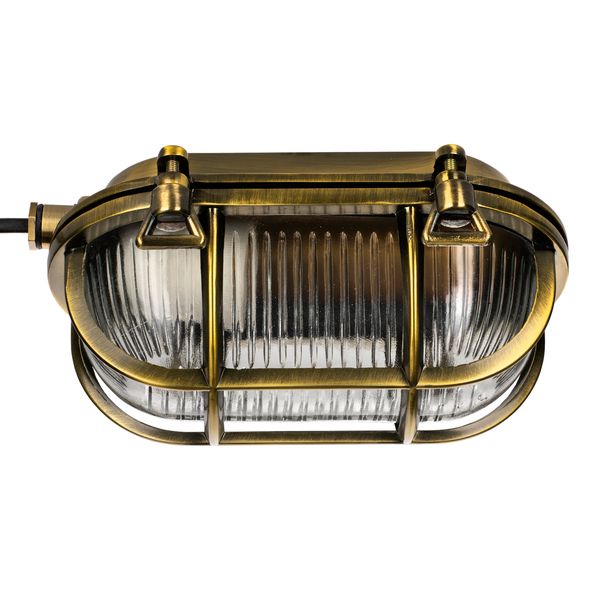

Bulkhead AHOI E27 Alu Bronze Oval IP64
Order only
Price (excl. VAT):
80,45 €
EAN: 8714681419649
MPN: 141964
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Bulkhead AHOI E27 Alu Bronze Oval IP64 |
| Brand | Bailey |
| Categories |
Wall and ceiling luminaires
Ceiling mounting lamps Surface mounting lamps |
| Country of origin* | CN |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Width | 136 mm |
| Colour housing | Bronze |
| Length | 197 mm |
| Height/depth | 110 mm |
| Lamp type | LED exchangeable |
| Impact strength | IK02 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP64 |
| Beam angle | Open beam/diffuse |
| Max. system power | 60 W |
| Rated luminous flux according to IEC 62722-2-1 | 0 lm |
| Luminaire efficacy | 0 lm/W |
Packing details
| Packing level 1 | 8714681419649 |
Other Technical data
| Protection class | I |
| Outer diameter | 0 mm |
| Lamp holder | E27 |
| Conductor cross section | 0.75 mm² |
| Connection type | Screwed terminal |
| Voltage type | AC |
| With movement sensor | No |
| Suitable for lamp power | 1-60 W |
| Type of grid | None |
| Type of control gear | Not required |
| Built-in width | 0 mm |
| Built-in diameter | 0 mm |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Number of poles | 3 |
| Housing material | Aluminium |
| Built-in length | 0 mm |
| Suitable for light line configuration | No |
| Suitable for emergency lighting | No |
| Light outlet | Direct |
| Light sharing | Symmetric |
| Material cover | Glass structured |
| With light source | No |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | No |
| Suitable for number of lamps | 1 |
| Suitable for wall mounting | Yes |
| Suitable for built-in mounting | No |
| With control gear | No |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for surface mounting | Yes |
| With air slots | No |
| Type of wiring | Ending |
| Rated life time L70/B50 at 25 °C | 0 h |
| Rated life time L80/B10 at 25 °C | 0 h |
| Rated life time L90/B10 at 25 °C | 0 h |
| Degree of protection (NEMA) | Other |
| Filament test according to IEC 60695-2-11 | None |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | Yes |
| Light distributor | None |
| Dimming depending on control gear | No |
| Dimming DSI | No |
| Suitable for ceiling mounting | Yes |
| Built-in height/depth | 0 mm |
| Power factor | 0 |
Description
The nostalgic ship lamp is back from never having been away. Tis ageless bulkhead, bullseye, bully as it is often called is made in vintage colours and materials to maintain the original look. Since it is rated IP64 (waterproof) this timeless fixture can bothe be used indoor and outdoor. It can bothe be mounted on wall and ceiling. The AHOI comes with a 3x0,75mm2 50cm cable but without a lamp inside.
