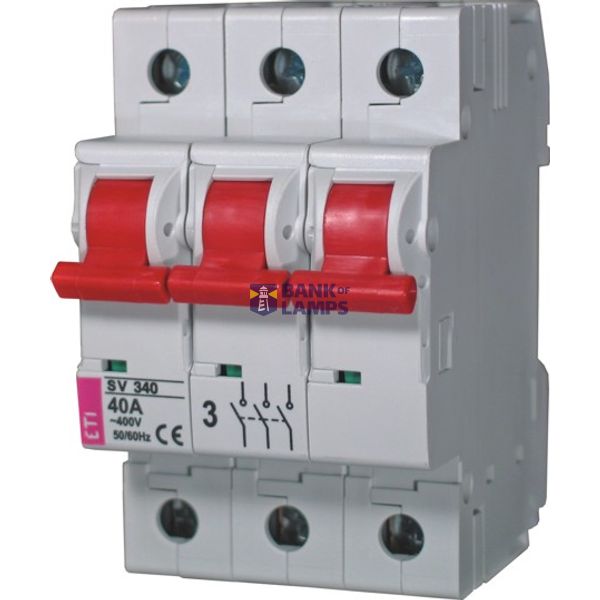

SV 340 3p 40A
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | SV 340 3p 40A |
| Brand | ETI |
| ETIM | EC000216 |
| Rated permanent current Iu | 40 A |
| Number of poles | 3 |
| Degree of protection (IP), front side | IP20 |
| Version as main switch | Yes |
| Version as safety switch | Yes |
| Version as maintenance-/service switch | Yes |
Packing details
| Packing level 1 | 5904722937185, 5904722937185 |
| Packing level 2 | 3838895321422, 3838895321422 |
| Packing level 3 | 3838895321439, 3838895321439 |
| Packing level 4 | 5904722937185, 5904722937185 |
Other Technical data
| Conditioned rated short-circuit current Iq | 2 kA |
| Interlockable | No |
| Motor drive integrated | No |
| Type of electrical connection of main circuit | Frame clamp |
| Version as emergency stop installation | Yes |
| Type of control element | Rocker lever |
| Suitable for floor mounting | No |
| Suitable for front mounting 4-hole | No |
| Suitable for front mounting centre | No |
| Suitable for distribution board installation | Yes |
| Suitable for intermediate mounting | No |
| Max. rated operation voltage Ue AC | 400 V |
| Motor drive optional | No |
| Voltage release optional | Yes |
| Device construction | Built-in device fixed built-in technique |
| Version as reversing switch | No |
Description
Build-in switch, SV 340 3p 40A, Function Build-in switch, Rated current (A) 40
