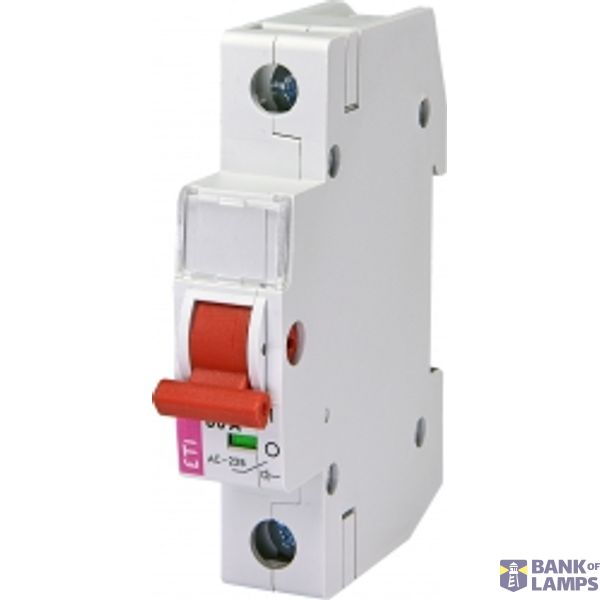

SV 180 1p 80A
In vendor's stock
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | SV 180 1p 80A |
| Brand | ETI |
| ETIM | EC000216 |
| Rated permanent current Iu | 80 A |
| Number of poles | 1 |
| Degree of protection (IP), front side | IP20 |
| Version as main switch | Yes |
| Version as safety switch | Yes |
| Version as maintenance-/service switch | Yes |
Packing details
| Packing level 1 | 5904722937307, 5904722937307 |
| Packing level 2 | 3838895027195, 3838895027195 |
| Packing level 3 | 3838895164180, 3838895164180 |
| Packing level 4 | 5904722937307, 5904722937307 |
Other Technical data
| Conditioned rated short-circuit current Iq | 4 kA |
| Interlockable | No |
| Motor drive integrated | No |
| Type of electrical connection of main circuit | Frame clamp |
| Version as emergency stop installation | Yes |
| Type of control element | Rocker lever |
| Suitable for floor mounting | No |
| Suitable for front mounting 4-hole | No |
| Suitable for front mounting centre | No |
| Suitable for distribution board installation | Yes |
| Suitable for intermediate mounting | No |
| Max. rated operation voltage Ue AC | 230 V |
| Motor drive optional | No |
| Voltage release optional | No |
| Device construction | Built-in device fixed built-in technique |
| Version as reversing switch | No |
Description
Build-in switch, SV 180 1p 80A, Function Build-in switch, Rated current (A) 80
