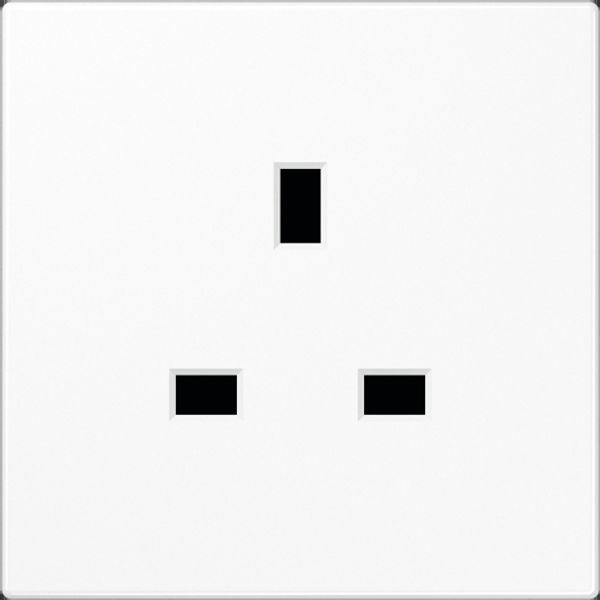

BS socket LS3521WW
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
32,36 €
EAN: 4011377117761
MPN: LS3521WW
Box: 1
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | BS socket LS3521WW |
| Brand | Jung |
| Categories |
Sockets
|
| Country of origin | DE |
| Harmonized System Code | 8536 6990 00 |
| Nominal current | 13 A |
| Nominal voltage | 250 V |
| Mounting method | Flush mounted (plaster) |
| Colour | White |
| Model | British Standard |
| Halogen free | Yes |
| Number of units | 1 |
| Lockable | No |
| With hinged lid | No |
| Connection type | Screwed terminal |
| Surface protection | Other |
| With signal lamp | No |
| Number of phases | 1 |
| With enhanced contact protection | Yes |
| With on/off switch | No |
| Protective contact | Yes |
| Label space/information surface | No |
| Eject-mechanism | No |
| Material quality | Duroplast |
| Rotated central insert | No |
| Over voltage protection | No |
| Fault current protection | No |
| Special power supply | No special power supply |
| Insulated mounting | No |
| Material | Plastic |
| Rated fault current | 0 mA |
| Type of fastening | Mounting with screw |
| RAL-number (similar) | 9016 |
| Transparent | No |
| Surface finishing | Glossy |
| With miniature fuse | No |
| With loop through function | No |
| Suitable for degree of protection (IP) | IP20 |
| Device width | 70 mm |
| Device height | 70 mm |
| Device depth | 0 mm |
| Number of socket outlets switchable | 0 |
| With function lighting | No |
| With orientation lighting | No |
| With built-in USB power supply | No |
| Number of modules (module system) | 0 |
| Number of active pins (round) | 2 |
| Number of active pins (flat) | 0 |
| Protective earth pin round | Yes |
| Min. depth of built-in installation box | 0 mm |
| Anti-bacterial treatment | No |
Packing details
| Packing level 1 | 4011377117761 |
| Packing level 2 | 4011377117761 |
Downloads
Description
General-purpose BS power outlet for domestic or light commercial circuits.Flush-mounted installation into plaster walls, designed to blend functionally into typical electrical systems with minimal intrusion. Device width 70 mm, height 70 mm.White plastic housing made of Duroplast with a glossy finish close to RAL 9016 standard.Screw mounting method used.Nominal voltage rated at 250 V, nominal current capacity up to 13 A, protective contact included, single-phase configuration.IP20 degree-rated suitable for dry indoor environments only;no hinged lid present for added protection.Connection type via screwed terminal ensures stability in wiring.Halogen-free construction reduces safety hazards during overheating scenarios. Enhanced contact protection present for improved user safety against accidental touches or shocks during use.Central insert orientation standard;not rotated.No label space provided;not lockable nor eject-equipped—basic distribution functionality without USB integration or built-in lighting enhancements. No overvoltage protection embedded within the unit"s design and fault tolerance aligned similarly, making this product better suited for secondary circuit setups where external mitigation devices handle transients/variations like frequency stability sources externally placed elsewhere near higher capacity industrial gears power architecture trailing downstream harness connectors trim espacios low-tier deviance symbiosія mod deepcopy λ
