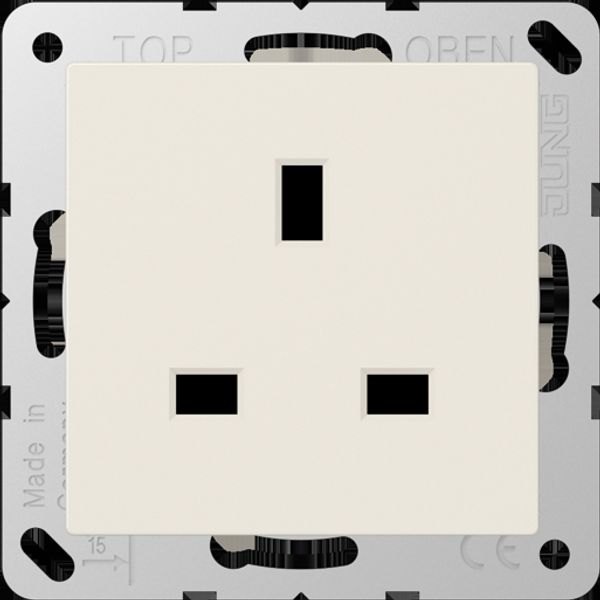

BS socket A3521
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
26,39 €
EAN: 4011377113442
MPN: A3521
Box: 1
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | BS socket A3521 |
| Brand | Jung |
| Categories |
Sockets
|
| Country of origin | DE |
| Harmonized System Code | 8536 6990 00 |
| Nominal current | 13 A |
| Nominal voltage | 250 V |
| Mounting method | Flush mounted (plaster) |
| Model | British Standard |
| Halogen free | Yes |
| Number of units | 1 |
| Lockable | No |
| With hinged lid | No |
| Connection type | Screwed terminal |
| Surface protection | Other |
| With signal lamp | No |
| Number of phases | 1 |
| With enhanced contact protection | Yes |
| With on/off switch | No |
| Protective contact | Yes |
| Label space/information surface | No |
| Eject-mechanism | No |
| Material quality | Duroplast |
| Rotated central insert | No |
| Over voltage protection | No |
| Fault current protection | No |
| Special power supply | No special power supply |
| Insulated mounting | No |
| Material | Plastic |
| Rated fault current | 0 mA |
| Type of fastening | Mounting with screw |
| RAL-number (similar) | 1013 |
| Transparent | No |
| Surface finishing | Glossy |
| With miniature fuse | No |
| With loop through function | No |
| Suitable for degree of protection (IP) | IP20 |
| Device width | 55 mm |
| Device height | 55 mm |
| Device depth | 0 mm |
| Number of socket outlets switchable | 0 |
| With function lighting | No |
| With orientation lighting | No |
| With built-in USB power supply | No |
| Number of modules (module system) | 0 |
| Number of active pins (round) | 2 |
| Number of active pins (flat) | 0 |
| Protective earth pin round | Yes |
| Min. depth of built-in installation box | 0 mm |
| Anti-bacterial treatment | No |
Packing details
| Packing level 1 | 4011377113442 |
| Packing level 2 | 4011377113442 |
Downloads
Description
BS socket A3521 fits into standard power systems for residential or commercial setups.British Standard design offering reliable electrical connections. Halogen-free plastic body, glossy finish, surface protection marked as "Other". Flush-mounted with plaster using screws.RAL color similar to 1013 (off-white).Dimensions:55 mm width x 55 mm height x depth unspecified but rated at 0 mm nominal depth.Material class Duroplast, impact strength not labeled.Protective contact included;one-phase configuration rated nominal current at 13 A and voltage at 250 V AC.Connection via screwed terminal, IP20 rating for degree of protection suitable indoors without heavy environmental stress conditions.Enhanced contact safety provided;round protective earth pin with no eject mechanism or lockable features noted. Device includes zero active flat pins alongside two rounded ones in the socket layout system—not USB enabled nor signal lighting equipped—designed pure for direct power delivery functions.With no orientation lights or miniature fuses integrated within internal builds
