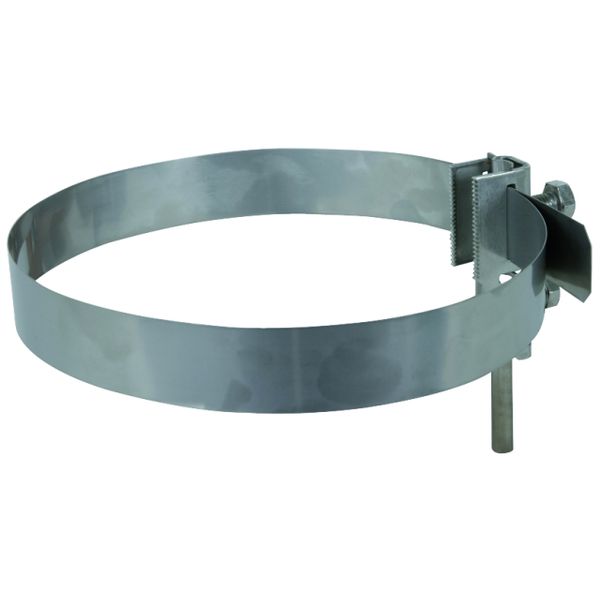

BS pipe clamp with tines D 27-168m w. connection f. Rd 6-8/10 or 4-50m image 1
BS pipe clamp with tines D 27-168m w. connection f. Rd 6-8/10 or 4-50m image 2
BS pipe clamp with tines D 27-168m w. connection f. Rd 6-8/10 or 4-50m thumbnail 1
BS pipe clamp with tines D 27-168m w. connection f. Rd 6-8/10 or 4-50m thumbnail 2
Dehn

BS pipe clamp with tines D 27-168m w. connection f. Rd 6-8/10 or 4-50m

In stock: No Vendor stock: No Minimal order quantity: 1
Price (excl. VAT):
14,18 €
This price is valid until 24.12.25
EAN: 4013364113039
MPN: 540200
Package: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name BS pipe clamp with tines D 27-168m w. connection f. Rd 6-8/10 or 4-50m
Brand Dehn
Categories Earthing Products
Country of origin DE
Harmonized System Code 8538 9099 00
Surface protection Untreated
Material Stainless steel V2A
Clamping/chucking range 27-168 mm
Min. clamping range inch 3/4 inch
Max. clamping range inch 6 inch

Packing details

Packing level 1 4013364113039, 4013364113039

Other Technical data

Diameter holding interception rod 6-10 mm

Downloads

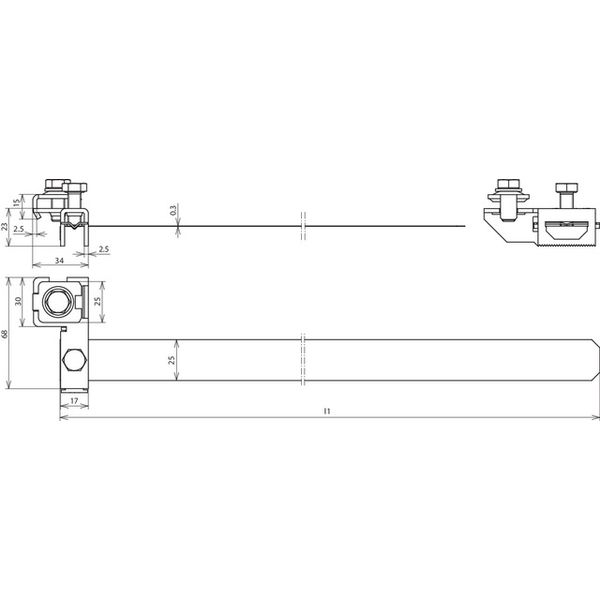

Product data sheet Dimensioned drawing

Description

Lightning protection pipe clamp with tines according to EN 62561-1, for the integration of pipes with surface protection into the protective and functional equipotential bonding according to IEC 60364-4-41/60364-5-54 (DIN VDE 0100-410/540) and lightning equipotential bonding according to IEC 62305-3.For use, e.g., on varnished or powder-coated surfaces up to a layer thickness of 0.2 mm, complete kit with continuously adjustable StSt tensioning strap, to connect 1 conductor Rd D10 mm or 1-2 conductors Rd D6-8 mm or 4-50 mm² (solid / stranded).
