BRP102 LED75/740 II DM
In stock: No
Vendor stock: No
Minimal order quantity: 1
Discontinued
Price (excl. VAT):
161,78 €
per pcs
Split box: 10,00 €
EAN: 8718696998205
MPN: 910925865343
Package: 1
Pallet: 160
Estimate delivery time at our warehouse (approx.):
3-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | BRP102 LED75/740 II DM |
| Brand | PHILIPS |
| Categories |
Street lighting
|
| Country of origin | PL |
| Harmonized System Code | 9405 1190 00 |
| Width | 217 mm |
| Colour rendering index CRI | 70-79 |
| Length | 520 mm |
| Height/depth | 79 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK08 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP65 |
| Colour temperature | 4000 K |
| Max. system power | 56.5 W |
| Rated luminous flux according to IEC 62722-2-1 | 6133 lm |
| Luminaire efficacy | 109 lm/W |
Packing details
| Packing level 1 | 8718696998205, 8718696998205 |
| Packing level 2 | 8718696998205 |
Other Technical data
| Mounting method | Side entry |
| Protection class | II |
| Lamp holder | Other |
| Conductor cross section | 0.75 mm² |
| Connection type | Other |
| Colour housing | Grey |
| Surface protection | Powder coating |
| Voltage type | AC |
| Type of control gear | LED operating device current-controlled |
| Number of poles | 2 |
| Housing material | Aluminium |
| Material cover | Glass transparent |
| With connection cable | No |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| With control gear | Yes |
| Adjustable optics | No |
| Suitable for spigot size | 42-60 mm |
| Nominal current | 248-270 mA |
| Colour of light | White |
| Remote control | None |
| With radio control | No |
| With light regulation program control | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Type of wiring | Ending |
| Rated life time L80/B10 at 25 °C | 100000 h |
| Colour consistency (McAdam ellipse) | SDCM5 |
| Rated ambient temperature according to IEC62722-2-1 | -30-35 °C |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | Yes |
| Light distributor | Diffuser lens/optic/panel |
| Dimming DSI | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 10 % |
| Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq) | 95 % |
| Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) | 98 % |
| Failure rate at median useful life of 100,000 h at 25 °C ambient (tq) | 5 % |
| Exchangeable control gear | Yes |
| Power factor | 0.95 |
Downloads
Product data sheet
Mounting instruction
Product data sheet for energy label
Instructions for use
Luminaria data
Others
Description

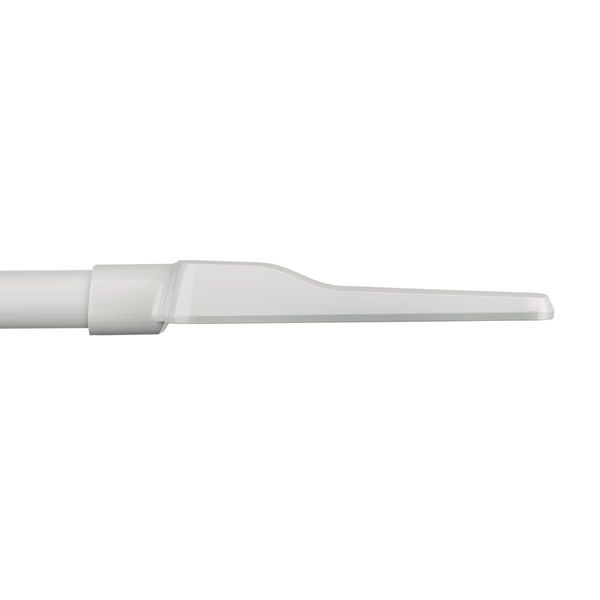

The Philips CoreLine Malaga LED family consists of two sizes for urban street lighting. Both use a Philips LED engine as a light source and a Philips Xitanium driver - a combination that results in energy savings of 50%. CoreLine Malaga LED has been designed to be as efficient as possible. It offers the same performance as the SON-T 50, 70, 100 and 150W luminaires it replaces, providing the right amount of light in the right place. Furthermore, as the LED light engine in CoreLine Malaga LED will last for the lifetime of the luminaire, it will return your investment simply by saving on the multiple lamp replacements required with SON-T. With its extended gland feature, the CoreLine Malaga LED luminaire is easy to install with no need to open the luminaire to connect the power cable. At the same time, the flat glass cover can be removed to allow access to the driver for maintenance, if required. Special versions of Malaga lighting are available with extra options. However, these specials are manufactured to order only, and have a longer delivery time. The options include: Wide beam (DW) optic, additional surge protection device (10kV), Marine Salt Protection (MSP) paint finish, Micro Mini Pro photocell 35 Lux, a built-in (glass) 6A fuse, and a 3-meter external flying lead cable (H07RN-F). Not all these options can always be combined with each other. For more advice, please consult your Philips partner.
