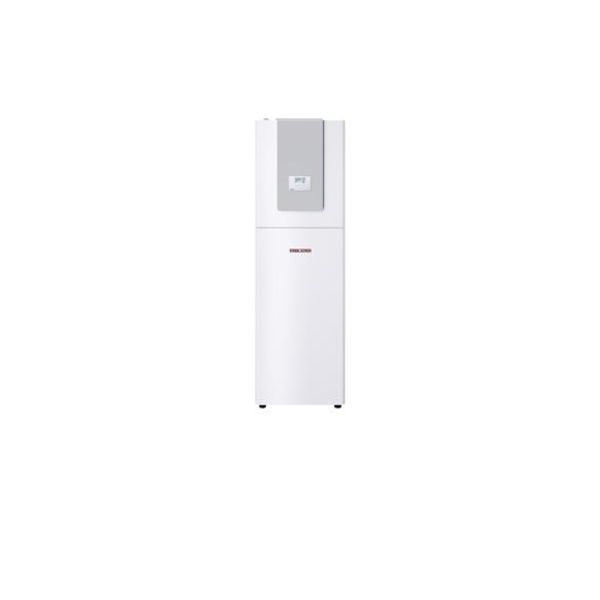

Brine-water heat pump, WPE-I 04 HKW 230 Premium
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
14 687,84 €
EAN: 4017212026168
MPN: 202616
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Brine-water heat pump, WPE-I 04 HKW 230 Premium |
| Brand | STIEBEL ELTRON |
| Categories |
Boilers and heaters
|
| Country of origin | DE |
| Harmonized System Code | 8418 6100 00 |
| Width | 600 mm |
| Height | 1971 mm |
| Depth | 703 mm |
| Weight | 265 kg |
| Connection voltage | 230 V |
| Degree of protection (IP) | IP20 |
| Max. heating water supply temperature | 75 °C |
| Data transfer via bus connection | Yes |
| Water heating energy efficiency (Nwh) | 108 % |
| Capacity profile | S |
| SEER low temperature application (35 °C) at average conditions | 195 % |
| SEER low temperature application (35 °C) at colder conditions | 200.5 % |
| SEER low temperature application (35 °C) at warmer conditions | 186.9 % |
| SEER middle temperature application (55 °C) at average conditions | 153 % |
| SEER middle temperature application (55 °C) at colder conditions | 156.8 % |
| SEER middle temperature application (55 °C) at warmer conditions | 146.7 % |
| Energy efficiency class room heating | A |
| Energy efficiency class water heating | A |
| COPd at Tj = +7 °C | 4.5 |
| Heating capacity at 0/35 °C (B0/W35) according to EN 14511 | 1-4.2 kW |
| Type of hot tap water feature | Other |
| Material hot tap water feature | Other |
| Swimming pool controls | Yes |
| Suitable for hot tap water | Yes |
| Suitable for swimming pool water heating | Yes |
| Suitable for cooling | Yes |
| With electric heating element | Yes |
| Type of refrigerant | R454c |
| Fuse (slow) | 16 A |
| Suitable for open well (groundwater) | Yes |
| Suitable for closed circuit well (soil collector) | Yes |
| Hot tap water feature integrated | Yes |
| COP at 0/35 °C (B0/W35) according to EN 14511 | 4.6 |
| Sound performance level according to EN 12102 at 0/35 °C | 43 dB(A) |
| Operating temperature source | -5-20 °C |
| Nominal volume flow rate source system | 0.1 l/s |
| Nominal volume flow rate output system | 0.1 l/s |
| Max. operating pressure output system | 3 bar |
| Outer pipe diameter connection source system | 28 mm |
| Outer pipe diameter connection output system | 22 mm |
| Data transfer via internet | Yes |
Packing details
| Packing level 1 | 4017212026168, 4017212026168 |
Downloads
Product data sheet for energy label
Mounting instruction
Others
Deep link REACH
Product data sheet
Dimensioned drawing
Videos
Description
STIEBEL ELTRON Brine-water-warmtepomp WPE-I 15 HKW 230 Premium De compacte en vermogensgeregelde brine-water-warmtepomp met invertertechnologie en geïntegreerde warmwaterboiler wordt binnen opgesteld. De hoge mate van integratie vergemakkelijkt de installatie, omdat de benodigde ruimte klein is. De warmtepomp kan voor renovaties worden gebruikt, omdat het gehele jaar door een aanvoertemperatuur tot 75 graden Celsius ter beschikking staat. Voor de energie-efficiënte passieve koeling via de vloerverwarming is een tussenwarmtewisselaar geïntegreerd. Monovalente werking voor verwarming en warm water is mogelijk. COMFORTEIGENSCHAPPEN: zeer stille werking door het ingekapselde koelcircuit en de ontkoppelde compressor. Als de geïntegreerde warmtepompmanager met de Internet Service Gateway wordt verbonden, kan de installatie in een smartphone-netwerk worden geïntegreerd en via een mobiel eindtoestel worden aangestuurd.
