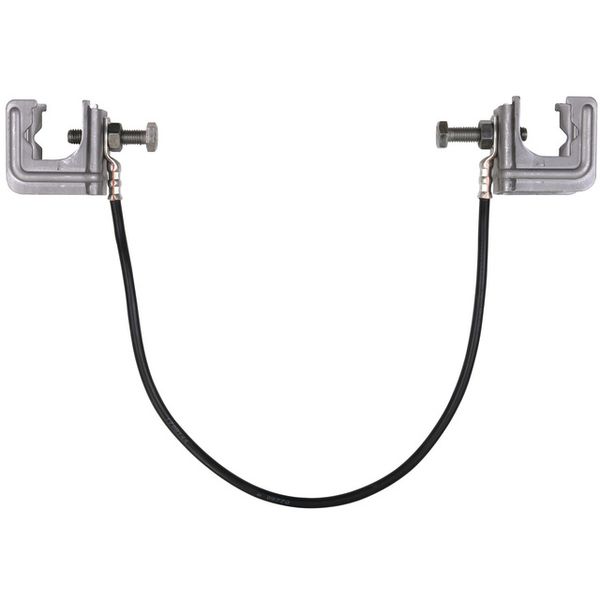

Bridging kit 16mm² L 600mm with two connecting clamps for Rd 10-28mm

Order only

Price (excl. VAT):

25,68 €

This price is valid until 24.12.25

EAN: 4013364360273

MPN: 416941

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	Bridging kit 16mm² L 600mm with two connecting clamps for Rd 10-28mm
Brand	Dehn
Categories	Earthing Products
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8538 9099 00
Surface protection	Other
Type of accessory/spare part	Bridgeover cord
Material	Copper

Packing details

Packing level 1

4013364360273, 4013364360273

Downloads

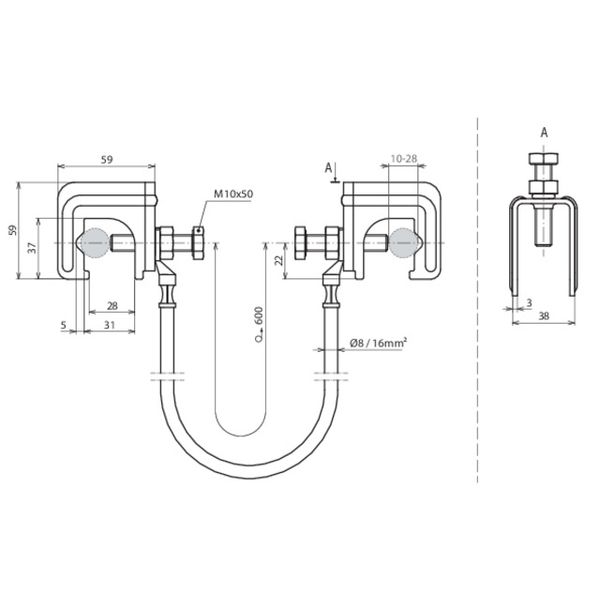

Product data sheet Dimensioned drawing

Description

Bridging device as per DIN EN 62561-1 for using the reinforcing bars (longitudinal bars) of reinforced concrete supports or walls as a down conductor. By using a reinforcing bar contained in reinforced concrete supports, there is no need for the additional installation of round conductors (St/tZn) for lightning protection / earthing / equipotential bonding. The electrically relevant connection is established across the entire length of the reinforced concrete support by a vertical reinforcing bar.
