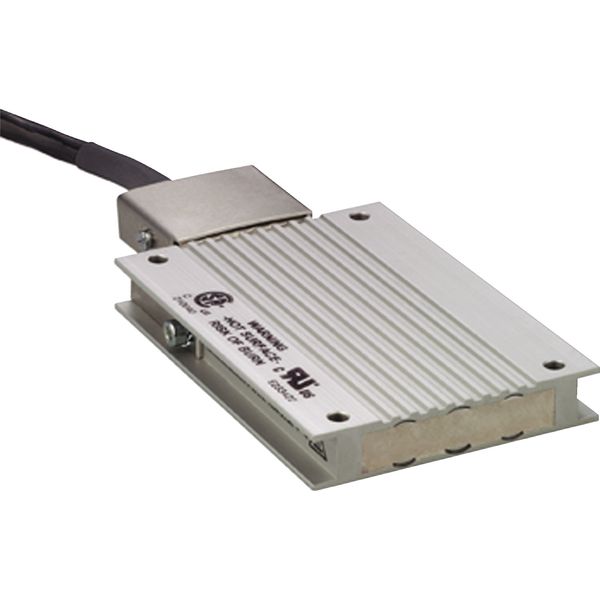

braking resistor - 100 Ohm - 100 W - cable 3 m - IP65 image 1

braking resistor - 100 Ohm - 100 W - cable 3 m - IP65 image 2

braking resistor - 100 Ohm - 100 W - cable 3 m - IP65 image 3

braking resistor - 100 Ohm - 100 W - cable 3 m - IP65 image 4

braking resistor - 100 Ohm - 100 W - cable 3 m - IP65

Order only

Price (excl. VAT):

247,62 €

This price is valid until 31.12.25

EAN: 3389119210713

MPN: VW3A7608R30

Package: 1

Box: 10

Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition	New
Manufacture name	braking resistor - 100 Ohm - 100 W - cable 3 m - IP65
Brand	Schneider Electric
Categories	Accessories/spare parts for frequency controller
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8533 2900 00
Type of accessory/spare part	Breaking resistance

Packing details

Packing level 1	3389119210713
Packing level 2	3389119210711

Other Technical data

Accessory	Yes
Spare part	No

Downloads

Technical manual Declaration DOC CE (Declaration of conformity CE) Mounting instruction

Description

This braking resistor allows your drive to operate while braking to a standstill or during slowdown braking. It dissipates the braking energy, and enables maximum transient braking torque. It has an Ohmic value of 72Ohms and a cable length of 3m. Its protection index is IP65. It is compatible with Altivar Machine ATV320. It weighs 0.76kg. This resistor is designed to be mounted on the outside of the enclosure.
