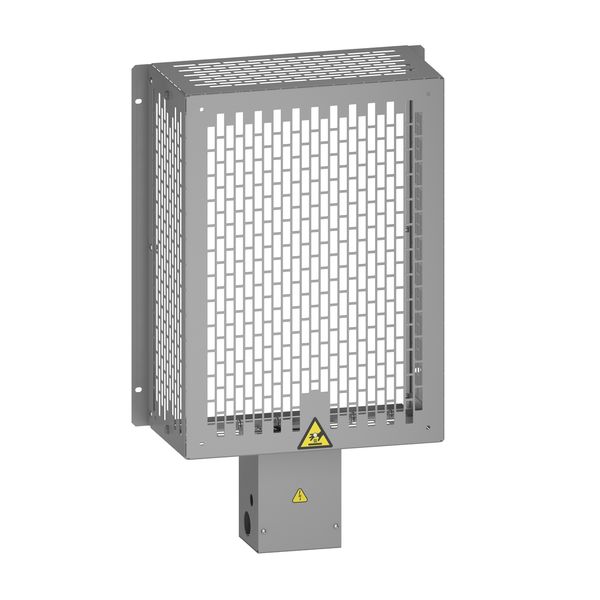

braking resistor - 10 ohms - 2.9 kW - IP20

Order only

Price (excl. VAT):

662,01 €

This price is valid until 31.12.25

EAN: 3606480802379

MPN: VW3A7744

Package: 1

Pallet: 2

Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition	New
Manufacture name	braking resistor - 10 ohms - 2.9 kW - IP20
Brand	Schneider Electric
Categories	Accessories/spare parts for frequency controller
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8533 2900 00
Type of accessory/spare part	Breaking resistance

Packing details

Packing level 1	3606480802379
Packing level 2	3606480802379

Other Technical data

Accessory	Yes
Spare part	No

Downloads

Technical manual Mounting instruction

Description

This braking resistor is an option for variable speed drives of Altivar range. It has an Ohmic value of 10Ohms at 20°C. This braking resistor allows your variable speed drive to operate while braking to a standstill, by dissipating the braking energy and enables maximum transient braking torque. Its protection index is IP20. It weighs 11.5kg. This resistor is designed to be mounted on the outside of the enclosure, but should not inhibit natural cooling, air inlets and outlets must not be obstructed in any way.
