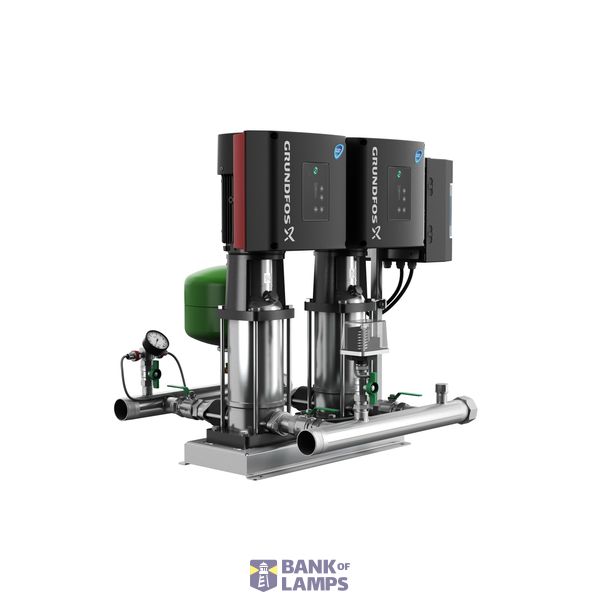

Booster system HYDRO MULTI-E 2 CRIE 1-9 U2 A-A-A-A-A
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Booster system HYDRO MULTI-E 2 CRIE 1-9 U2 A-A-A-A-A |
| Brand | GRUNDFOS |
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8413 7075 00 |
| ETIM | EC010737 |
| Nominal current | 1.68 A |

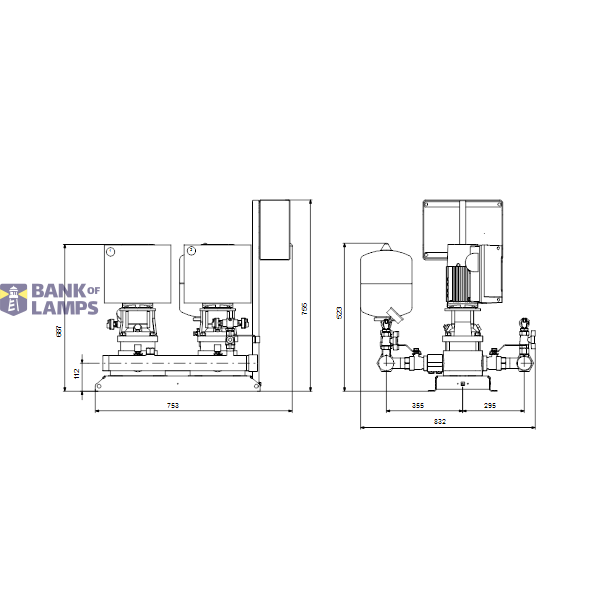

| Width | 832 mm |
| Height | 755 mm |
| Number of phases | 3 |
| Material reservoir | Other |
| Max. discharge flow | 6 m³/h |
| Max. static height | 81 m |
| Flange shape | Round |
| Length | 753 mm |
| Ambient temperature | 0 °C |
| Supporting protocol for PROFIBUS | Yes |
| Supporting protocol for KNX | No |
| Potential free switch contact | Yes |
| Electrical connection | Other |
| Rated voltage | 380 V |
| Frequency | 50 Hz |
| Radio standard Bluetooth | No |
| Radio standard Wi-Fi 802.11 | No |
| With communication interface RS-232 | No |
| With communication interface RS-485 | Yes |
| Supporting protocol for EtherNet/IP | Yes |
| Supporting protocol for PROFINET IO | No |
| Material impeller/pump wheel | Stainless steel |
| Motor power output (P2) per motor | 0.75 kW |
| Volume flow rate (BEP) | 4 m³/h |
| Discharge head at flow rate (BEP) | 598.04 kPa |
| Connection standard inlet side | EN 1092-1 |
| Connection standard outlet side | EN 1092-1 |
| Communication | Built-in and prepared |
| Radio standard 2G / 3G / 4G | No |
| Radio standard 5G | No |
| Interface signal 0-10 V / 2-10 V | Yes |
| Interface signal 0-20 mA / 4-20 mA | Yes |
| Interface PT100 / PT1000 / PTC | Yes |
| Interface Pulse Width Modulation (PWM) | No |
| Interface pulse counter | No |
| Supporting protocol for CAN/CANOpen | No |
| Supporting protocol for Modbus TCP | Yes |
| Supporting protocol for Modbus RTU | Yes |
| Supporting protocol for BACnet MS/TP | Yes |
| Supporting protocol for BACnet IP | Yes |
| Supporting protocol for LON/LONWorks | Yes |
| Supporting protocol for LIN Bus | No |
| Type of speed control | Continuously variable |
| Motor speed control | Built-in |
| Max. operating pressure | 16 bar |
| Material quality reservoir | Other |
| Suitable for tap water | Yes |
| Material pump casing | Stainless steel |
| Material quality pump casing | Stainless steel 316 (1.4408) |
| Number of pumps | 2 |
| Suction installation | No |
| With bypass pipe | No |
| Medium temperature (continuous) | 5 °C |
| Material quality impeller/pump wheel | Stainless steel 304 (1.4301) |
| Suitable for rainwater | Yes |
| Connection inlet side | External thread conical BSPT-R (ISO 7-1 / EN 10226-1) |
| Nominal diameter connection inlet side | 2 inch (50) |
| Nominal diameter connection outlet side | 2 inch (50) |
| Suitable for sprinkling/irrigation | Yes |
| Connection outlet side | External thread conical BSPT-R (ISO 7-1 / EN 10226-1) |
| Flange compression stage connection inlet side | PN 16 |
| Flange compression stage connection outlet side | PN 16 |
| Degree of protection (IP) cabinet | IP54 |
| Degree of protection (IP) pump | IP54 |
Packing details
| Packing level 1 | 5711495952808, 5711495952808 |
Downloads
Description
Energy efficient pressure boosting system for boosting of clean water. Available with 2-4 parallel connected frequency controlled pumps, Integrated advanced controller and all necessary fittings.
