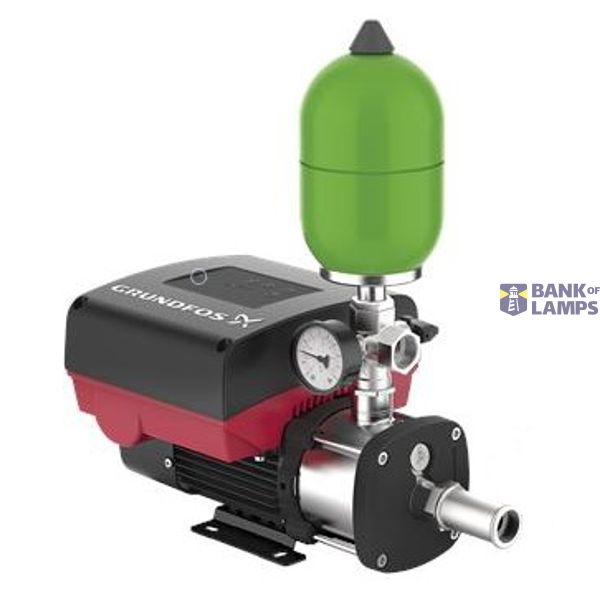

Booster system Hydro CMBE3-93 I-U-C-C-D-A 1x200-240V 50/60 Hz
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Booster system Hydro CMBE3-93 I-U-C-C-D-A 1x200-240V 50/60 Hz |
| Brand | GRUNDFOS |
| Country of origin* | HU |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8413 7075 00 |
| ETIM | EC010737 |
| Nominal current | 7.98 A |

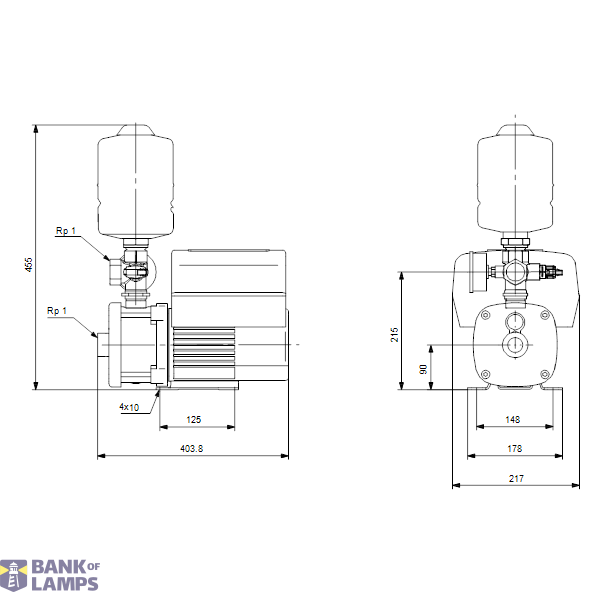

| Width | 217 mm |
| Height | 455 mm |
| Number of phases | 1 |
| Cable length | 1.5 m |
| Max. discharge flow | 4 m³/h |
| Max. static height | 93 m |
| Flange shape | Other |
| Length | 404 mm |
| Rotational speed | 0 1/min |
| Ambient temperature | -20 °C |
| Electrical connection | Connection cable with plug |
| Rated voltage | 200 V |
| Frequency | 50 Hz |
| Material impeller/pump wheel | Stainless steel |
| Motor power input (P1) per motor | 1.72 kW |
| Motor power output (P2) per motor | 1.5 kW |
| Volume flow rate (BEP) | 4.2 m³/h |
| Discharge head at flow rate (BEP) | 650.01 kPa |
| Connection standard inlet side | ISO 228-1 |
| Connection standard outlet side | ISO 228-1 |
| Type of speed control | Continuously variable |
| Motor speed control | Built-in |
| Max. operating pressure | 10 bar |
| Material pump casing | Stainless steel |
| Insulation class according to IEC | F |
| Material quality pump casing | Stainless steel 304 (1.4301) |
| Number of pumps | 1 |
| Suction installation | No |
| Medium temperature (continuous) | 0 °C |
| Material quality impeller/pump wheel | Stainless steel 304 (1.4301) |
| Connection inlet side | Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1) |
| Nominal diameter connection inlet side | 1 inch (25) |
| Nominal diameter connection outlet side | 1 inch (25) |
| Connection outlet side | Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1) |
| Flange compression stage connection inlet side | PN 10 |
| Flange compression stage connection outlet side | PN 10 |
| Degree of protection (IP) cabinet | IP55 |
| Degree of protection (IP) pump | IP55 |
Packing details
| Packing level 1 | 5711493909422, 5711493909422 |
Downloads
Description
CMBE is a high-efficiency compact booster suitable for clean water supply and pressure boosting in domestic and light commercial applications. It keeps constant pressure via the integrated speed control.
