Booster pump CMBE5-62 I-U-C-C-D-B 1X200-240V 50/60 HZ
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Booster pump CMBE5-62 I-U-C-C-D-B 1X200-240V 50/60 HZ |
| Brand | GRUNDFOS |
| Country of origin* | HU |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8413 7075 00 |
| ETIM | EC010737 |
| Nominal current | 7.98 A |

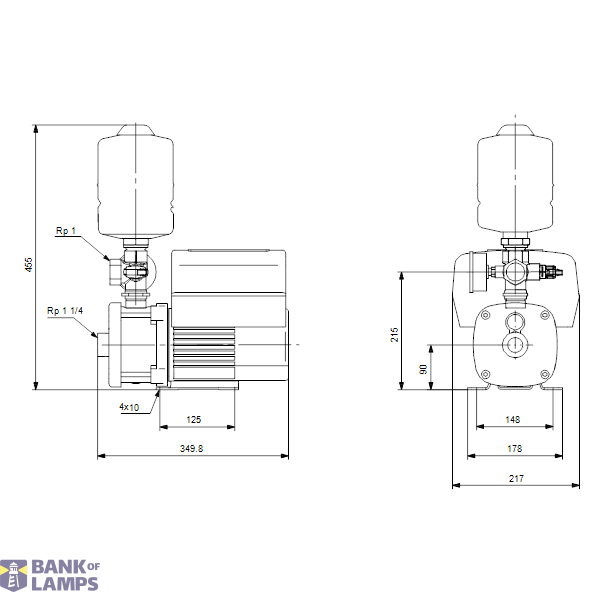

| Width | 217 mm |
| Height | 455 mm |
| Number of phases | 1 |
| Material reservoir | Other |
| Cable length | 1.5 m |
| Max. discharge flow | 6 m³/h |
| Max. static height | 62 m |
| Flange shape | Other |
| Length | 350 mm |
| Rotational speed | 0 1/min |
| Ambient temperature | -20 °C |
| Supporting protocol for PROFIBUS | Yes |
| Supporting protocol for KNX | No |
| Potential free switch contact | Yes |

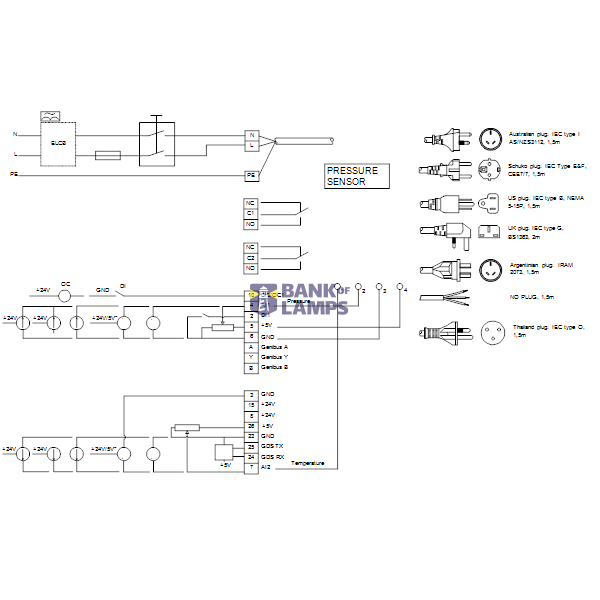

| Electrical connection | Connection cable with plug |
| Rated voltage | 200 V |
| Frequency | 50 Hz |
| Radio standard Bluetooth | No |
| Radio standard Wi-Fi 802.11 | No |
| With communication interface RS-232 | No |
| With communication interface RS-485 | Yes |
| Supporting protocol for EtherNet/IP | Yes |
| Supporting protocol for PROFINET IO | No |
| Material impeller/pump wheel | Stainless steel |
| Motor power input (P1) per motor | 1.72 kW |
| Motor power output (P2) per motor | 1.5 kW |
| Volume flow rate (BEP) | 6 m³/h |
| Discharge head at flow rate (BEP) | 468.63 kPa |
| Connection standard inlet side | ISO 228-1 |
| Connection standard outlet side | ISO 228-1 |
| Communication | Built-in and prepared |
| Radio standard 2G / 3G / 4G | No |
| Radio standard 5G | No |
| Interface signal 0-10 V / 2-10 V | Yes |
| Interface signal 0-20 mA / 4-20 mA | Yes |
| Interface PT100 / PT1000 / PTC | Yes |
| Interface Pulse Width Modulation (PWM) | No |
| Interface pulse counter | No |
| Supporting protocol for CAN/CANOpen | No |
| Supporting protocol for Modbus TCP | Yes |
| Supporting protocol for Modbus RTU | Yes |
| Supporting protocol for BACnet MS/TP | Yes |
| Supporting protocol for BACnet IP | Yes |
| Supporting protocol for LON/LONWorks | Yes |
| Supporting protocol for LIN Bus | No |
| Type of speed control | Continuously variable |
| Motor speed control | Built-in |
| Max. operating pressure | 10 bar |
| Material quality reservoir | Other |
| Suitable for tap water | Yes |
| Material pump casing | Stainless steel |
| Insulation class according to IEC | F |
| Material quality pump casing | Stainless steel 304 (1.4301) |
| Number of pumps | 1 |
| Suction installation | No |
| With bypass pipe | No |
| Medium temperature (continuous) | 0 °C |
| Material quality impeller/pump wheel | Stainless steel 304 (1.4301) |
| Suitable for rainwater | Yes |
| Connection inlet side | Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1) |
| Nominal diameter connection inlet side | 1 1/4 inch (32) |
| Nominal diameter connection outlet side | 1 inch (25) |
| Suitable for sprinkling/irrigation | Yes |
| Connection outlet side | Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1) |
| Flange compression stage connection inlet side | PN 10 |
| Flange compression stage connection outlet side | PN 10 |
| Degree of protection (IP) cabinet | IP55 |
| Degree of protection (IP) pump | IP55 |
Packing details
| Packing level 1 | 5711493909446, 5711493909446 |
Downloads
Description

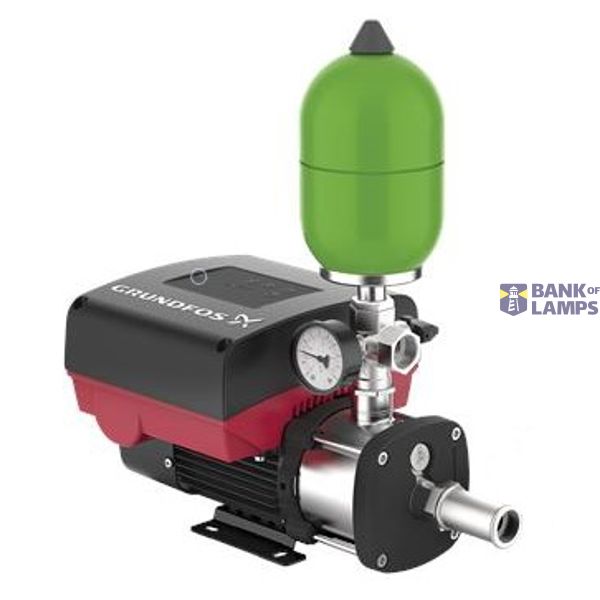

CMBE is a high-efficiency compact booster suitable for clean water supply and pressure boosting in domestic and light commercial applications. It keeps constant pressure via the integrated speed control.
