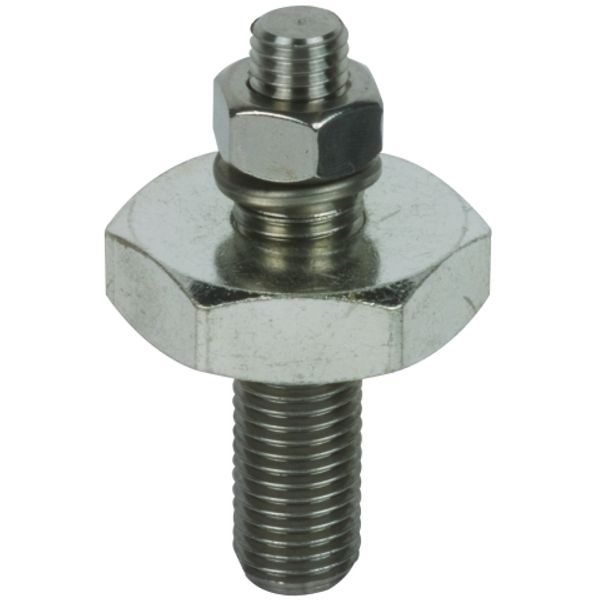

Bolted-type connector with threaded bolt M16/M12 L 55mm and nut

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

41,48 €

This price is valid until 31.12.25

EAN: 4013364089587

MPN: 705510

Package: 1

Estimate delivery time at our warehouse (approx.): 2 weeks

Technical Information

Item condition	New
Manufacture name	Bolted-type connector with threaded bolt M16/M12 L 55mm and nut
Brand	Dehn
Categories	Tools, measuring instruments and protection
Country of origin	DE
Harmonized System Code	8538 9099 00
Max. short circuit current	29.6 kA
Max. wire cross section copper	150 mm²

Packing details

Packing level 1

4013364089587, 4013364089587

Other Technical data

Mounting method	Other
Construction type	Straight
Connection of the earthing and short circuit device	Stud bolt

Downloads

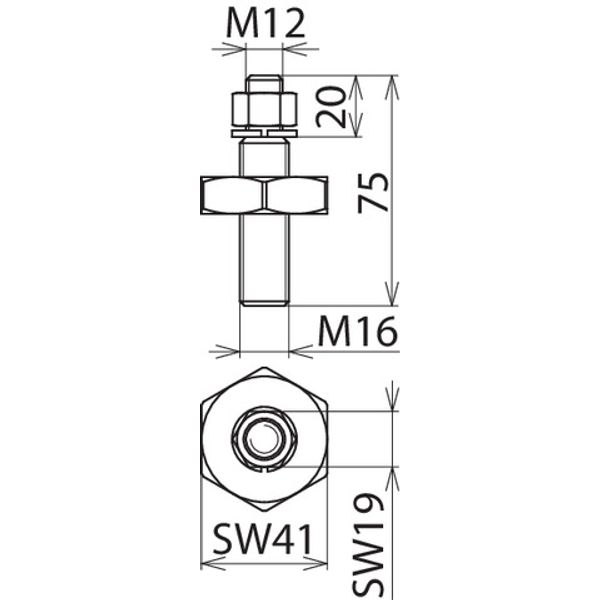

Product data sheet Dimensioned drawing Deep link REACH

Description

Bolted-type connector for converting from M12 to M16 threaded pin as connection point to the earthing system in accordance with EN/IEC 61230 (DIN VDE 0683-100).
