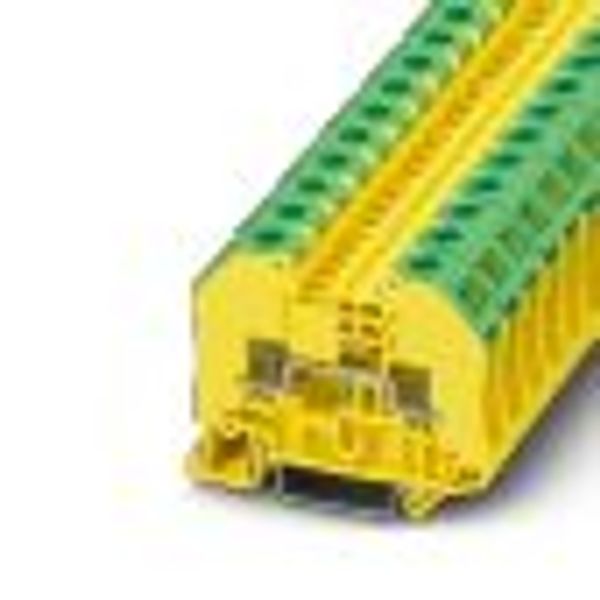

RT 3-PE - Bolt connection terminal block image 1
RT 3-PE - Bolt connection terminal block image 2
RT 3-PE - Bolt connection terminal block image 3
RT 3-PE - Bolt connection terminal block image 4
RT 3-PE - Bolt connection terminal block thumbnail 1
RT 3-PE - Bolt connection terminal block thumbnail 2
RT 3-PE - Bolt connection terminal block thumbnail 3
RT 3-PE - Bolt connection terminal block thumbnail 4
Phoenix Contact

RT 3-PE - Bolt connection terminal block

Order only Minimal order quantity: 50
Price (excl. VAT):
5,29 € per pcs
This price is valid until 24.12.25
Subtotal: 264,50 € MOQ: 50
EAN: 4046356140164
MPN: 3049411
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name RT 3-PE - Bolt connection terminal block
Brand Phoenix Contact
Categories DIN Rail Terminal Blocks
Country of origin CN
Harmonized System Code 8536 9010 00
Mounting method DIN rail (top hat rail) 35 mm
Rated voltage 1000 V
Type of electrical connection 1 Bolt connection
Type of electrical connection 2 Bolt connection
Number of levels 1
Number of clamp positions per level 2
Rated current In 24 A

Packing details

Packing level 1 4046356140164, 4046356140164

Other Technical data

Colour Other
Width 12.3 mm
Height 66 mm
Depth 50.35 mm
Operating temperature -60-105 °C
Inflammability class of insulation material according to with UL94 V0
Closing plate required Yes
Internally connected stages No
Material insulation body Other
Explosion-tested version 'Ex e' Yes

Description

Bolt connection terminal block, Note: the BE-RT... path extension is to be used for non-insulated cable lugs (see accessories)., nom. voltage: 1000 V, nominal current: 24 A, number of connections: 2, connection method: Bolt connection, 1 level, Rated cross section: 2.5 mm², mounting type: NS 35/7,5, NS 35/15, color: green-yellow

Accessories

E/UK 1 - End bracket
Order only
Phoenix Contact
E/UK 1 - End bracket
0,31 € per pcs
This price is valid until 24.12.25
Subtotal: 15,50 € MOQ: 50
EAN: 4017918017316
MPN: 1201413
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
E/UK - End bracket
Order only
Phoenix Contact
E/UK - End bracket
0,248 € per pcs
This price is valid until 24.12.25
Subtotal: 12,40 € MOQ: 50
EAN: 4017918017323
MPN: 1201442
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
MPS-IH RD - Insulating sleeve
Order only
Phoenix Contact
MPS-IH RD - Insulating sleeve
0,238 € per pcs
This price is valid until 24.12.25
Subtotal: 2,38 € MOQ: 10
EAN: 4017918098155
MPN: 0201676
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
MPS-IH WH - Insulating sleeve
Order only
Phoenix Contact
MPS-IH WH - Insulating sleeve
0,238 € per pcs
This price is valid until 24.12.25
Subtotal: 2,38 € MOQ: 10
EAN: 4017918098773
MPN: 0201663
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
MPS-MT - Test plug
Order only
Phoenix Contact
MPS-MT - Test plug
1,27 € per pcs
This price is valid until 24.12.25
Subtotal: 12,70 € MOQ: 10
EAN: 4017918098803
MPN: 0201744
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
MPS-IH BU - Insulating sleeve
Order only
Phoenix Contact
MPS-IH BU - Insulating sleeve
0,238 € per pcs
This price is valid until 24.12.25
Subtotal: 2,38 € MOQ: 10
EAN: 4017918098896
MPN: 0201689
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
E/NS 35 N - End bracket
Order only
Phoenix Contact
E/NS 35 N - End bracket
0,57 € per pcs
This price is valid until 31.12.25
Subtotal: 28,50 € MOQ: 50
EAN: 4017918129309
MPN: 0800886
Box: 1
Estimate delivery time at our warehouse (approx.): 2-4 weeks
CLIPFIX 35 - End bracket
Order only
Phoenix Contact
CLIPFIX 35 - End bracket
0,166 € per pcs
This price is valid until 24.12.25
Subtotal: 8,30 € MOQ: 50
EAN: 4017918156541
MPN: 3022218
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
CLIPFIX 35-5 - End bracket
In stock
Phoenix Contact
CLIPFIX 35-5 - End bracket
0,219 € per pcs
This price is valid until 31.12.25 or while stock lasts
Subtotal: 10,95 € MOQ: 50
EAN: 4017918194154
MPN: 3022276
Box: 1
Estimate delivery time at our warehouse (approx.): 2-4 weeks
SB-ME 2-6 - Switching jumper
Order only
Phoenix Contact
SB-ME 2-6 - Switching jumper
1,69 € per pcs
This price is valid until 24.12.25
Subtotal: 16,90 € MOQ: 10
EAN: 4046356521833
MPN: 3035755
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
