METZ CONNECT

BMT-TP BACnet MS/TP

Name: BMT-TP BACnet MS/TP
Brand: METZ CONNECT
Price: 456.700 EUR
Availability: PreOrder

Order only

Price (excl. VAT):

456,70 €

This price is valid until 24.12.26

EAN: 4250184158899

MPN: 11088813

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	BMT-TP BACnet MS/TP
Brand	METZ CONNECT
Categories	Bus System Devices (KNX/Modbus)
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8517 6200 00
Mounting method	DRA (DIN-rail adapter)
Type of current	AC
Rated operating voltage	24 V
Bus system KNX	No
Bus system radio frequent	No
Bus system Powernet	No
With bus connection	Yes
Max. number of venetian-blind outputs	2
Width in number of modular spacings	3
Remote operation possible	No
Ethernet	No
External signal voltage necessary	No
Other bus systems	Other
Bus system LON	No
Suitable for C-load	No
LED controlling	No
Different phases connectable	No
Local operation/hand operation	No
With switch function	Yes
Degree of protection (IP)	IP20
With LED indication	Yes
Bus system KNX radio	No

Packing details

Packing level 1

4250184158899, 4250184158899

Description

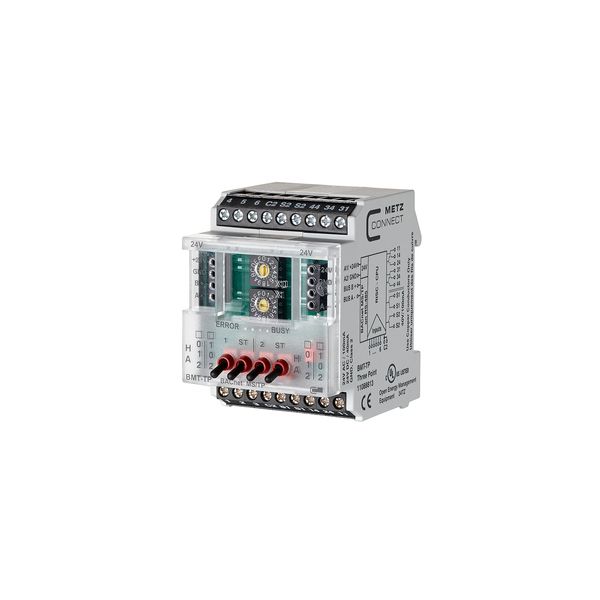

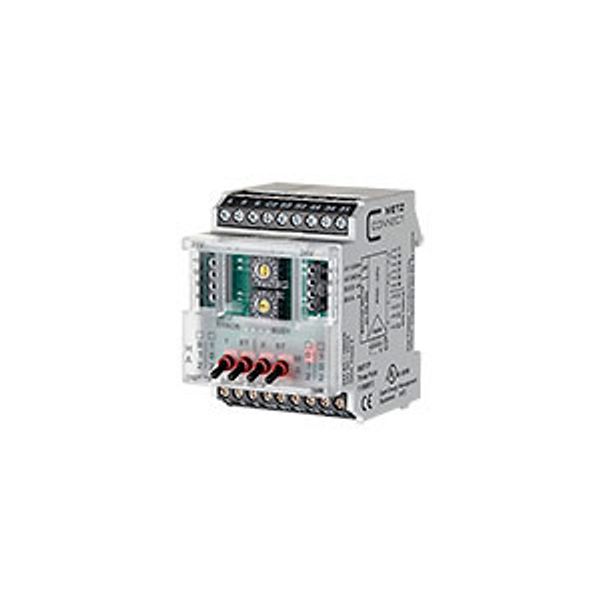

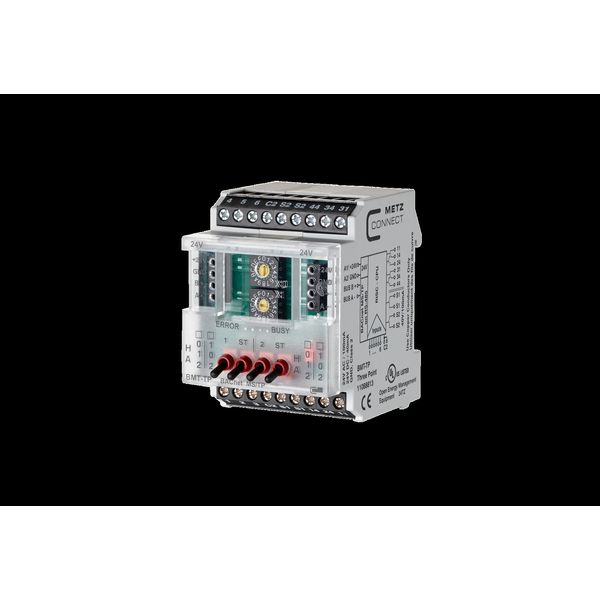

The BACnet MS/TP three-point module with 6 digital inputs, 2 two-level relay outputs and 2 digital outputs was developed for decentralized switching tasks. It is suitable for switching, for example, multi-level pumps and fans or louvers. In this case it is necessary to protect the relay contacts by appropriate load-dependent measures. The inputs and outputs can be switched and scanned by means of standard objects via a BACnet client. The input terminals 1 to 6 are wired with the C2 terminals on two poles to potential-free switches or contacts. The module has a manual control for the outputs. The module address and the baud rate are set by means of two address switches on the front. Suitable for decentralized mounting in serial sub-distributor.Connection with screw type terminal blocks
