METZ CONNECT

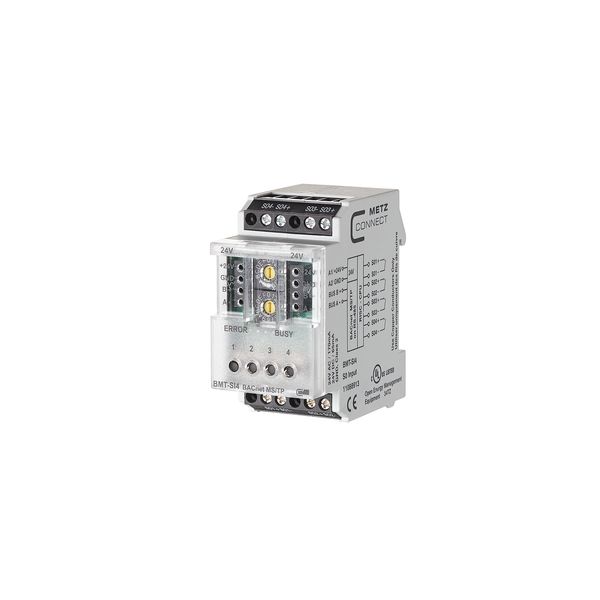

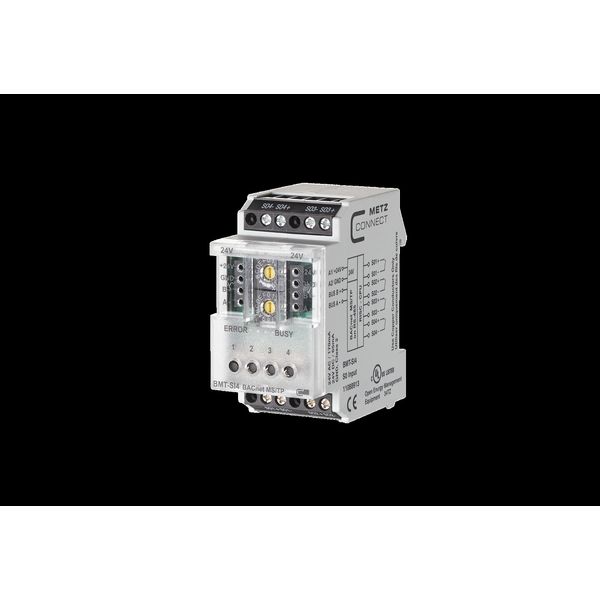

BMT-SI4 BACnet MS/TP

Name: BMT-SI4 BACnet MS/TP
Brand: METZ CONNECT
Price: 329.470 EUR
Availability: PreOrder

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

329,47 €

This price is valid until 24.12.25

EAN: 4250184160991

MPN: 11088913

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	BMT-SI4 BACnet MS/TP
Brand	METZ CONNECT
Categories	Bus System Devices (KNX/Modbus)
Country of origin	DE
Harmonized System Code	8517 6200 00
Bus system KNX	No
Bus system radio frequent	No
Bus system Powernet	No
With bus connection	Yes
Other bus systems	Other
Bus system LON	No
Bus system KNX radio	No
Radio frequent bidirectional	No

Packing details

Packing level 1

4250184160991, 4250184160991

Other Technical data

Mounting method	DRA (DIN-rail adapter)
Number of inputs	4
Width in number of modular spacings	2
External signal voltage necessary	No
LED controlling	Yes
Degree of protection (IP)	IP20
With LED indication	Yes
Bus module detachable	No
Min. depth of built-in installation box	60 mm

Description

The BACnet MS/TP module with 4 S0 inputs according to DIN EN 62053-31 class A was developed for decentralized switching tasks. It is suitable, among other things, for counting S0 counter pulses. This allows very good integration of the module into an energy controlling system. In case of a power failure, the last counter readings are saved. The inputs can be scanned by means of standard objects via a BACnet client. When using the Accumulator Object, pulses up to 50 Hz can be counted, when using the PulseConverter object, pulses up to 500 Hz can be counted. Module address and bit rate are set with two rotary switches on the front. Suitable for decentralized mounting on DIN TH35 rail according to IEC 60715 in electrical distribution cabinets.Connection with screw type terminal blocks
