METZ CONNECT

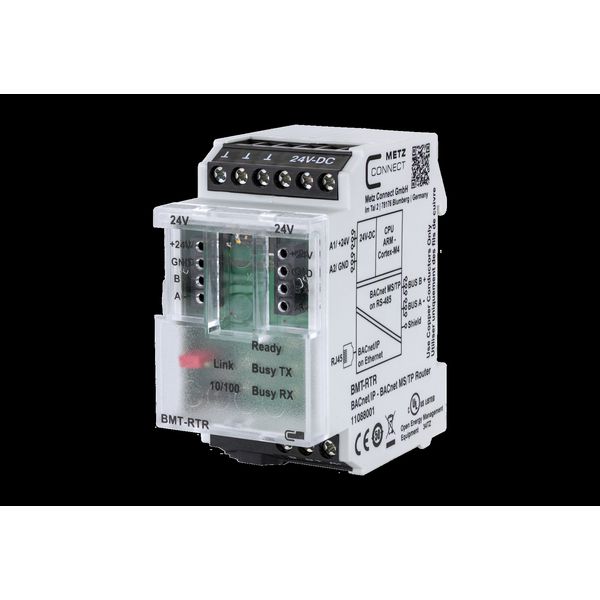

BMT-RTR BACnet-Router

Name: BMT-RTR BACnet-Router
Brand: METZ CONNECT
Price: 310.620 EUR
Availability: PreOrder

Order only

Price (excl. VAT):

310,62 €

This price is valid until 24.12.25

EAN: 4251394650210

MPN: 11088001

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	BMT-RTR BACnet-Router
Brand	METZ CONNECT
Categories	Bus System Devices (KNX/Modbus)
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8517 6200 00
Mounting method	DRA (DIN-rail adapter)
Bus system KNX	No
Width in number of modular spacings	2

Packing details

Packing level 1

4251394650210, 4251394650210

Other Technical data

Bus system radio frequent	No
Bus system Powernet	No
Other bus systems	Other
Bus system LON	No
Bus system KNX radio	No

Description

BMT-(F)-RTR is a compact Router and enables bidirectional data exchange between BACnet/IP and BACnet MS/TP fieldbus devices. The BMT-(F)-RTR can be connected to METZ CONNECT BACnet MS/TP devices via two 4-pole terminals on the front of the device and a jumper plug. An integrated web server is used for parameter settings, management and monitoring of the two interfaces (Ethernet / RS485). The web interface is also used to update the firmware. The BMT-(F)-RTR is suitable for decentralised mounting in electrical sub-distribution boards or in control cabinets on TH35 mounting rails in accordance with IEC 60715.Connection with screw type terminal blocks, Access to 32 devices on the BACnet MS/TP bus, Bidirectional exchange of data between BACnet/IP and BACnet MS/TP devices, Protocol: BACnet MS/TP, BACnet/IP, BACnet Ethernet, HTTP 1.0, Integrated web server, Intuitive and software-independent TCP configuration via web interface, Recording and analysis of IP and RS485 communication, Simple device search of METZ CONNECT BACnet MS/TP devices on the RS485 bus, Fast connection of METZ CONNECT BACnet MS/TP devices via proven jumper plug technology
