METZ CONNECT

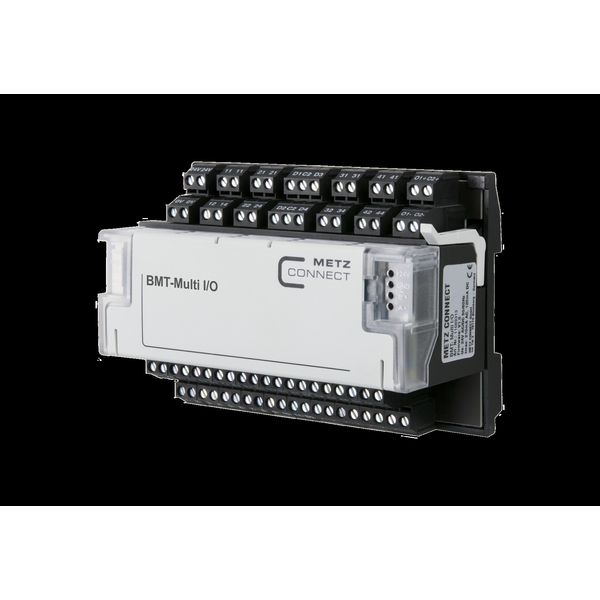

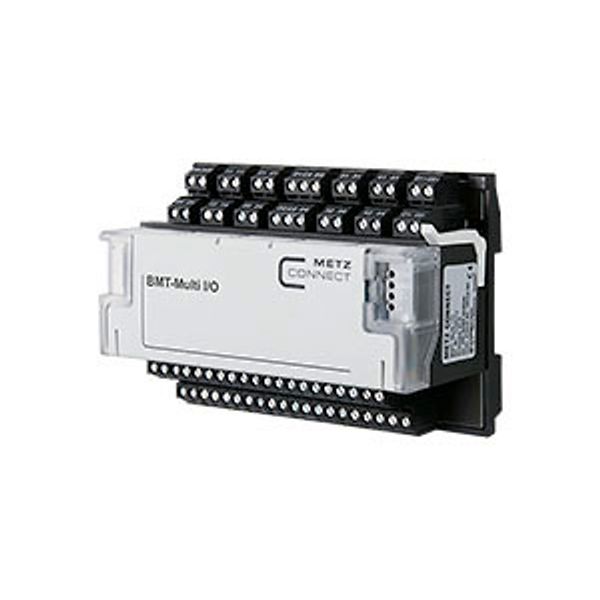

BMT-Multi I/O BACnet MS/TP

Name: BMT-Multi I/O BACnet MS/TP
Brand: METZ CONNECT
Price: 692.530 EUR
Availability: PreOrder

Order Only

Price (excl. VAT):

692,53 €

This price is valid until 24.12.25

EAN: 4251394600901

MPN: 11089313

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	BMT-Multi I/O BACnet MS/TP
Brand	METZ CONNECT
Categories	Bus System Devices (KNX/Modbus)
Country of origin	DE
Harmonized System Code	8517 6200 00
Mounting method	DRA (DIN-rail adapter)
Rated operating voltage	24 V
Bus system KNX	No
Bus system radio frequent	No
Bus system Powernet	No
With bus connection	Yes
Remote operation possible	No
Ethernet	No
External signal voltage necessary	No
Other bus systems	Other
Bus system LON	No
Suitable for C-load	No
LED controlling	No
Different phases connectable	No
Local operation/hand operation	No
With switch function	No
Degree of protection (IP)	IP20
With LED indication	Yes
Bus system KNX radio	No

Packing details

Packing level 1

4251394600901, 4251394600901

Description

The BACnet module BMT-Multi I/0 is a compact and rapidly to install solution to connect digital and analog signals from the actor and sensor level directly to a control unit in building automation via BACnet MS/TP protocol. 29 I/Os, some of them are configurable, are available for different tasks. The inputs and outputs can be controlled and scanned by standard objects via a BACnet Client. Module address and bit rate are set with two rotary switches on the front or by software. The relays K1 to K4 are equipped with a manual control and allow manual intervention. In this case it is necessary to protect the relay contacts by appropriate load-dependent measures. Suitable for decentralized mounting on DIN TH35 rail according to IEC 60715 in electrical distribution cabinets.
