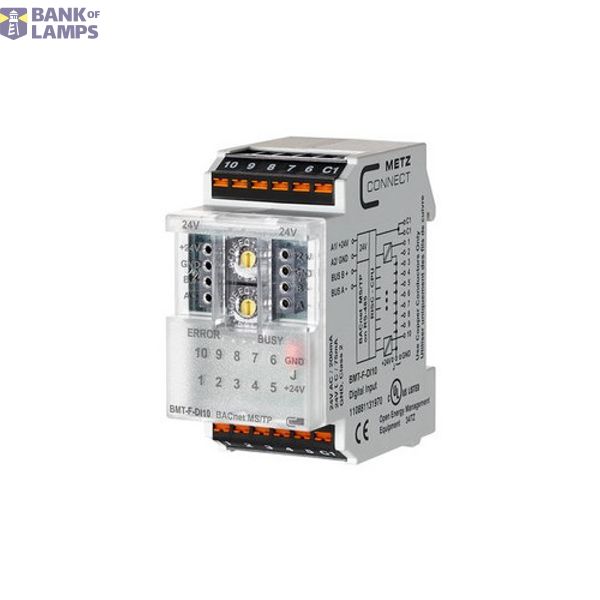

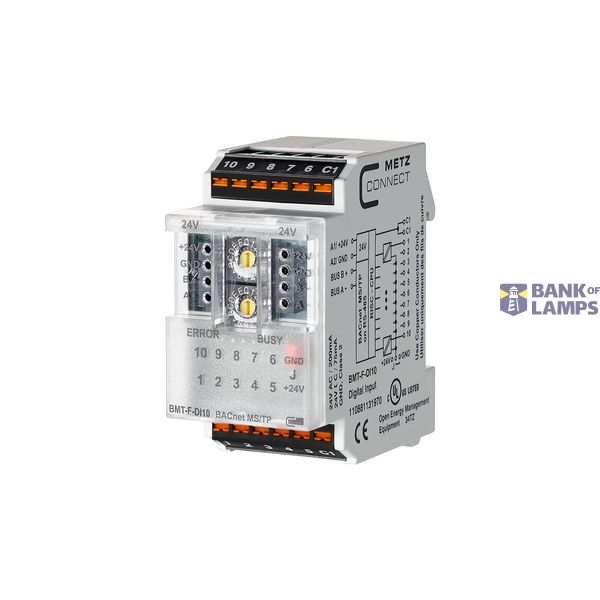

Digital Input Module BMT-F-DI10 BACnet MS/TP

Order only

EAN: 4251394620527

MPN: 110881131970

Package: 1

Price (excl. VAT)

127,80 €

per unit

MOQ: 1

EDT to our warehouse: 4-6 weeks

Price valid until 01.01.99 or while in stock

Technical Information

Item condition	New
Manufacture name	BMT-F-DI10 BACnet MS/TP
Brand	METZ CONNECT
Categories	Bus System Devices (KNX & Modbus)
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8517 6200 00
ETIM	EC000688
Bus system KNX	No
Bus system radio frequent	No
Bus system Powernet	No
With bus connection	Yes
Other bus systems	Other
Bus system LON	No
Bus system KNX radio	No
Radio frequent bidirectional	No

Packing details

Packing level 1

4251394620527, 4251394620527

Other Technical data

Mounting method	DRA (DIN-rail adapter)
Number of inputs	10
Width in number of modular spacings	2
Type of voltage (input voltage)	AC/DC
External signal voltage necessary	No
Input voltage	0-24 V
LED controlling	Yes
Degree of protection (IP)	IP20
With LED indication	Yes
Bus module detachable	No
Min. depth of built-in installation box	60 mm

Description

The BACnet MS/TP module with 10 digital inputs was developed for decentralized switching tasks. It is suitable for detecting potential-free switch states, for example electrical limit switches on vent valves or auxiliary contacts of power contactors. The inputs can be used as contact or voltage inputs. The inputs can be scanned by means of standard objects via a BACnet client. The module is addressed and the baud rate is set by means of two address switches on the front. Suitable for decentralized mounting on DIN TH35 rail according to IEC 60715 in electrical distribution cabinets.Connection with spring clamp terminal blocks (push-in)
