METZ CONNECT

BMT-DO4 BACnet MS/TP

Name: BMT-DO4 BACnet MS/TP
Brand: METZ CONNECT
Price: 254.170 EUR
Availability: PreOrder

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

254,17 €

This price is valid until 24.12.25

EAN: 4250184138761

MPN: 1108861321

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	BMT-DO4 BACnet MS/TP
Brand	METZ CONNECT
Categories	Bus System Devices (KNX/Modbus)
Country of origin	DE
Harmonized System Code	8517 6200 00
Bus system KNX	No
With bus connection	Yes
Bus system LON	No
Bus system KNX radio	No
Radio frequent bidirectional	No

Packing details

Packing level 1

4250184138761, 4250184138761

Other Technical data

Mounting method	DRA (DIN-rail adapter)
Rated current	5 A
Rated operating voltage	24 V
Bus system radio frequent	No
Bus system Powernet	No
Max. number of switching contacts	4
Width in number of modular spacings	2
Other bus systems	Other
Suitable for C-load	No
Different phases connectable	No
Local operation/hand operation	Yes
Degree of protection (IP)	IP20
With LED indication	Yes
Modular expandability	No
Bus module detachable	No
Min. depth of built-in installation box	60.6 mm

Description

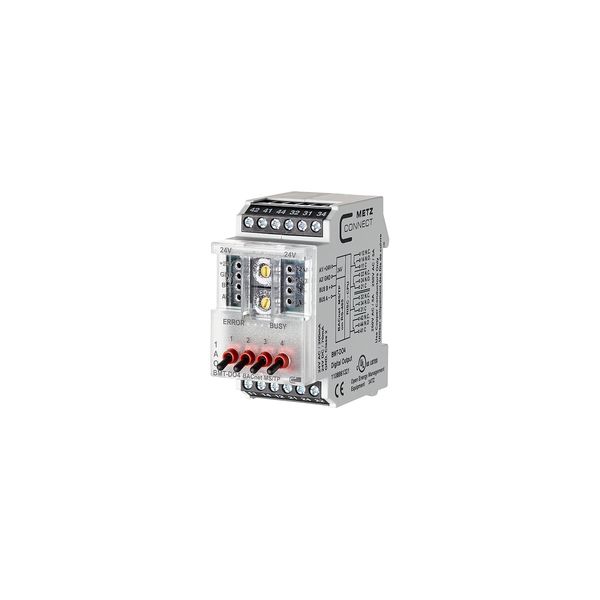

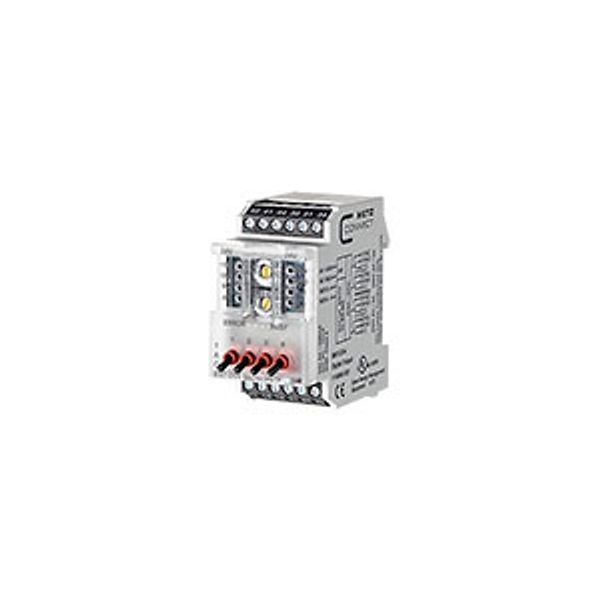

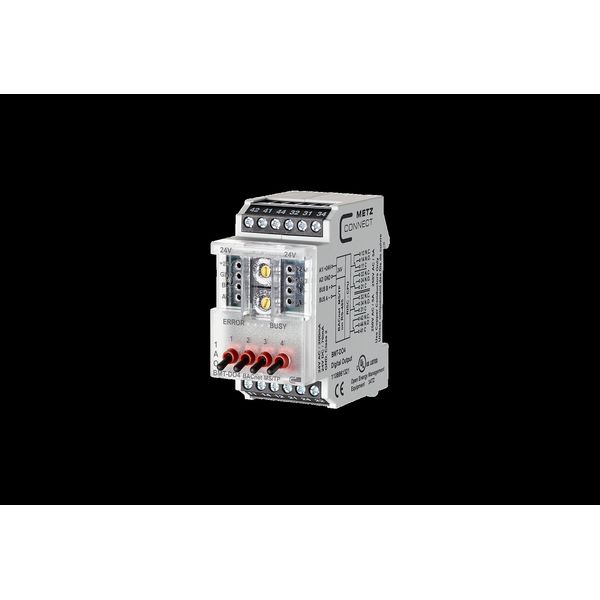

The BACnet MS/TP module with 4 digital outputs was developed for decentralized switching tasks. It is suitable for switching electrical components, such as motors, contactors, lamps, louvers, etc. In this case it is necessary to protect the relay contacts by appropriate load-dependent measures. The module is provided with a manual control for manually switching the relays. The outputs can be switched by means of standard objects via a BACnet client. The module is addressed and the baud rate is set by means of two address switches on the front. Suitable for decentralized mounting on DIN TH35 rail according to IEC 60715 in electrical distribution cabinets.Connection with screw type terminal blocks
