METZ CONNECT

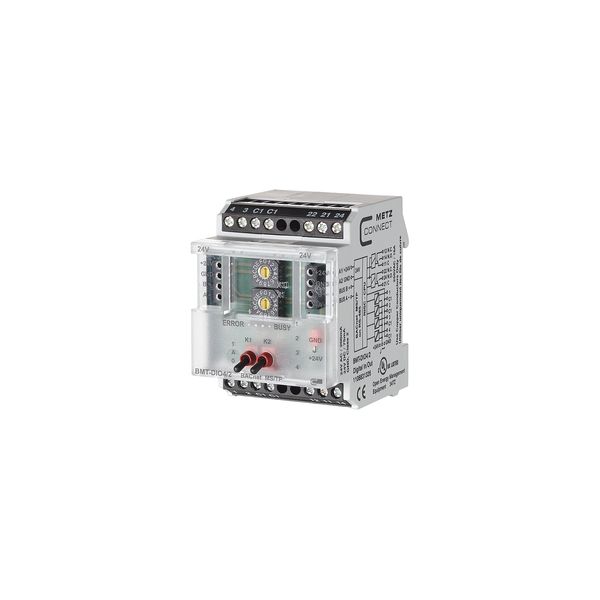

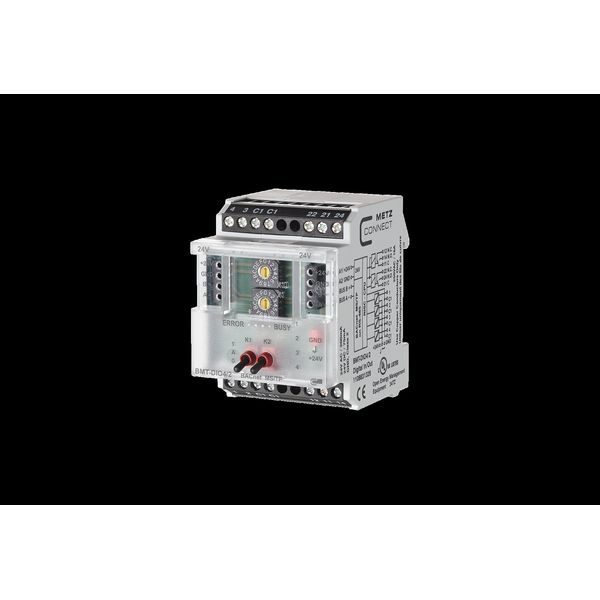

BMT-DIO4/2 BACnet MS/TP

Name: BMT-DIO4/2 BACnet MS/TP
Brand: METZ CONNECT
Price: 290.140 EUR
Availability: PreOrder

Order Only

Price (excl. VAT):

290,14 €

This price is valid until 24.12.25

EAN: 4250184138723

MPN: 1108831326

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	BMT-DIO4/2 BACnet MS/TP
Brand	METZ CONNECT
Categories	Bus System Devices (KNX/Modbus)
Country of origin	DE
Harmonized System Code	8517 6200 00
Mounting method	DRA (DIN-rail adapter)
Number of inputs	4
Rated operating voltage	24 V
Bus system KNX	No
Bus system radio frequent	No
Bus system Powernet	No
With bus connection	Yes
Max. number of switching contacts	2
Width in number of modular spacings	3
Remote operation possible	No
Ethernet	No
External signal voltage necessary	No
Other bus systems	Other
Bus system LON	No
Suitable for C-load	No
LED controlling	Yes
Different phases connectable	No
Local operation/hand operation	Yes
With switch function	Yes
Degree of protection (IP)	IP20
With LED indication	Yes
Bus system KNX radio	No

Packing details

Packing level 1

4250184138723, 4250184138723

Description

The BACnet MS/TP module with 4 digital inputs and 2 relay outputs with manual control was developed for decentralized switching tasks. It is suitable for accommodating, for example, light switches and window contacts in a room, switching two light strips or controlling louvers. It can also be used to control 2 motorized fire dampers. In this case it is necessary to protect the relay contacts by appropriate load-dependent measures. The inputs can be used as contact or voltage inputs. The inputs and outputs can be switched and scanned by means of standard objects via a BACnet client. The module address and the baud rate are set by means of two address switches on the front. Suitable for decentralized mounting on DIN TH35 rail according to IEC 60715 in electrical distribution cabinets.Connection with screw type terminal blocks
