METZ CONNECT

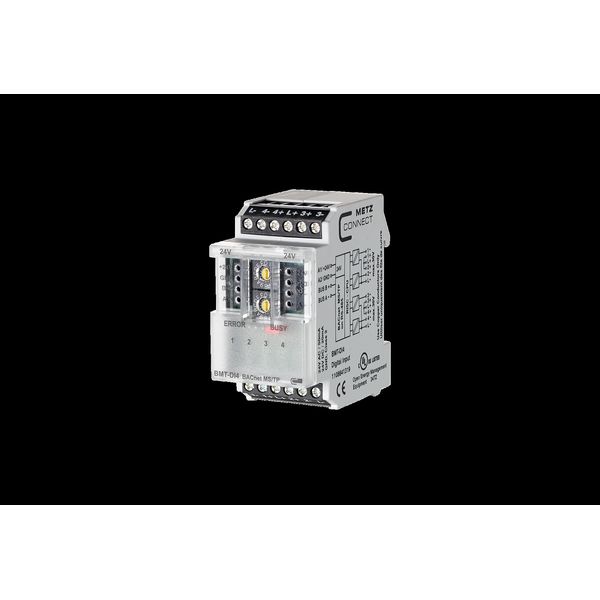

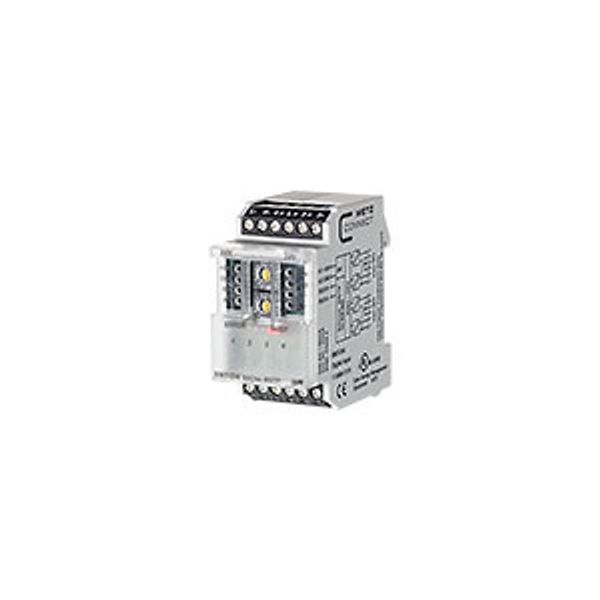

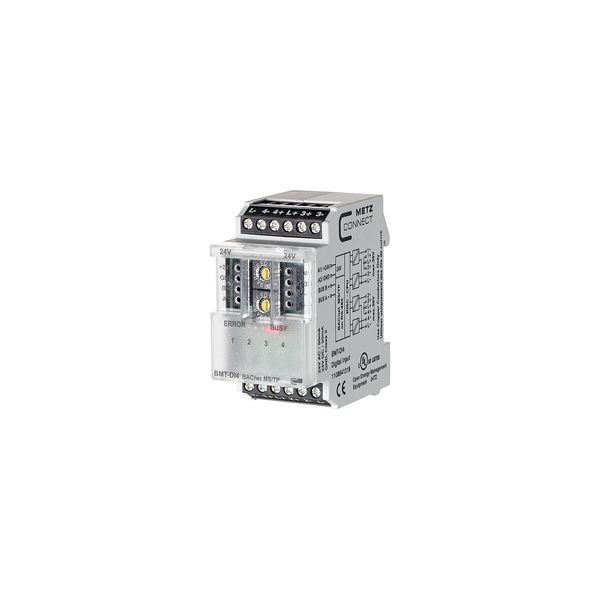

BMT-DI4 BACnet MS/TP

Name: BMT-DI4 BACnet MS/TP
Brand: METZ CONNECT
Price: 211.440 EUR
Availability: PreOrder

Order Only

Price (excl. VAT):

211,44 €

This price is valid until 24.12.25

EAN: 4250184138747

MPN: 1108841319

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	BMT-DI4 BACnet MS/TP
Brand	METZ CONNECT
Categories	Bus System Devices (KNX/Modbus)
Country of origin	DE
Harmonized System Code	8517 6200 00
Bus system KNX	No
Bus system radio frequent	No
Bus system Powernet	No
With bus connection	Yes
Other bus systems	Other
Bus system LON	No
Bus system KNX radio	No
Radio frequent bidirectional	No

Packing details

Packing level 1

4250184138747, 4250184138747

Other Technical data

Mounting method	DRA (DIN-rail adapter)
Number of inputs	4
Width in number of modular spacings	2
Type of voltage (input voltage)	AC/DC
External signal voltage necessary	No
Input voltage	30 V
LED controlling	Yes
Degree of protection (IP)	IP20
With LED indication	Yes
Bus module detachable	No
Min. depth of built-in installation box	60 mm

Description

The BACnet MS/TP module with 4 digital inputs was developed for decentralized switching tasks. It is suitable for detecting potential-free switch states, for example electrical limit switches on vent valves or auxiliary contacts of power contactors. The inputs can be operated by means of potential-free switches or contacts or used as voltage inputs. The inputs can be scanned by means of standard objects via a BACnet client. The module is addressed and the baud rate is set by means of two address switches on the front. Suitable for decentralized mounting on DIN TH35 rail according to IEC 60715 in electrical distribution cabinets.Connection with screw type terminal blocks
