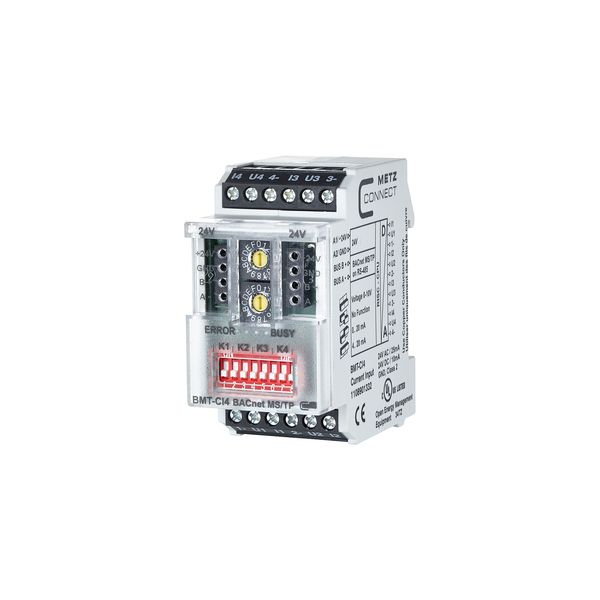

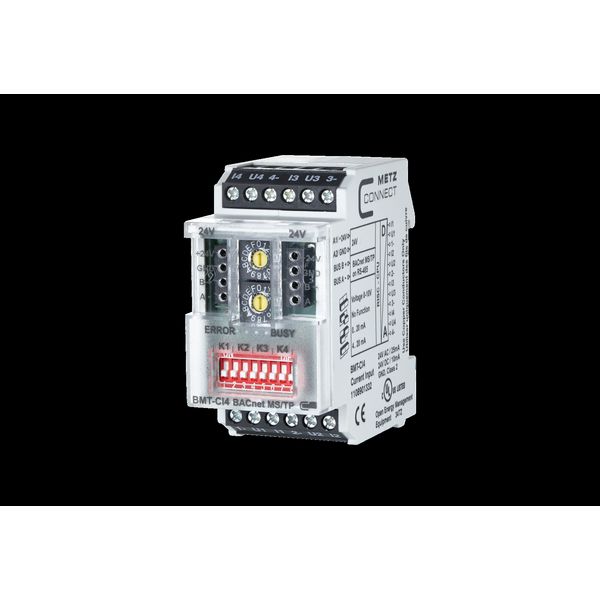

BMT-CI4 BACnet MS/TP
Order Only
Price (excl. VAT):
337,42 €
EAN: 4250184165682
MPN: 1108901332
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | BMT-CI4 BACnet MS/TP |
| Brand | METZ CONNECT |
| Categories |
Bus System Devices (KNX/Modbus)
|
| Country of origin | DE |
| Harmonized System Code | 8517 6200 00 |
| Bus system KNX | No |
| Bus system radio frequent | No |
| Bus system Powernet | No |
| With bus connection | Yes |
| Other bus systems | Other |
| Bus system LON | No |
| Bus system KNX radio | No |
Packing details
| Packing level 1 | 4250184165682, 4250184165682 |
Other Technical data
| Mounting method | DRA (DIN-rail adapter) |
| Model | Base module |
| Number of inputs | 4 |
| Input current drive | Yes |
| Input voltage drive | Yes |
| Width in number of modular spacings | 2 |
| Degree of protection (IP) | IP20 |
| With LED indication | Yes |
| Min. depth of built-in installation box | 60 mm |
Description
The BACnet MS/TP with 4 analog inputs was developed for decentralized switching tasks. It is suitable for detecting currents and voltages of, for example, active temperature sensors, electrical vent and mixing valves, valve positions, etc. Each input can be set as current or voltage input by DIP switches on the front. The inputs can be scanned with standard objects via a BACnet client. Module address and bit rate are set with the two rotary switches on the front. Suitable for decentralized mounting on TH35 rails according to IEC 60715 in electrical distribution cabinets.Connection with screw type terminal blocks
