METZ CONNECT

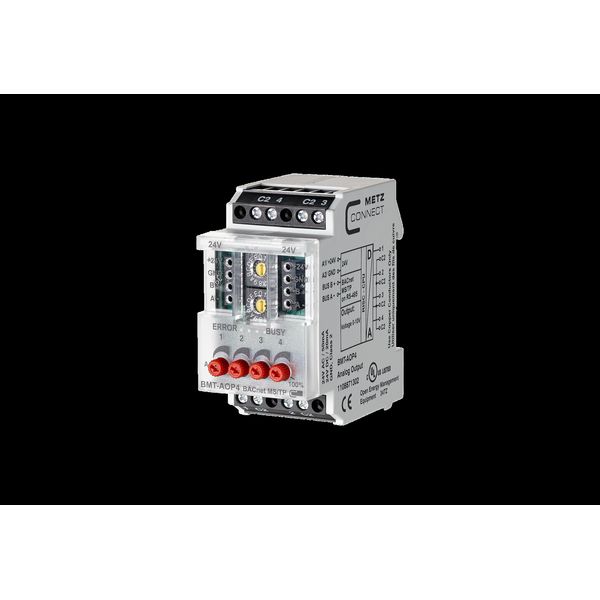

BMT-AOP4 BACnet MS/TP

Name: BMT-AOP4 BACnet MS/TP
Brand: METZ CONNECT
Price: 274.460 EUR
Availability: PreOrder

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

274,46 €

This price is valid until 24.12.25

EAN: 4250184151937

MPN: 1108871302

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	BMT-AOP4 BACnet MS/TP
Brand	METZ CONNECT
Categories	Bus System Devices (KNX/Modbus)
Country of origin	DE
Harmonized System Code	8517 6200 00
Mounting method	DRA (DIN-rail adapter)
Model	Base module
Number of outputs	4
Bus system KNX	No
Bus system radio frequent	No
Bus system Powernet	No
Other bus systems	Other
Bus system LON	No
Output voltage	0-10 V
With LED indication	Yes
Output current	5 mA

Packing details

Packing level 1

4250184151937, 4250184151937

Other Technical data

With bus connection	Yes
Width in number of modular spacings	2
Degree of protection (IP)	IP20
Bus system KNX radio	No
Min. depth of built-in installation box	60 mm

Description

The BACnet MS/TP module with 4 analog outputs was developed for decentralized switching tasks. It is suitable as encoder for control variables, for example for electrical vent and mixing valves, valve positions, etc. The outputs can be output by means of standard objects via a BACnet client. Each output can be set for automatic or manual operation by means of 4 potentiometers at the front. The module is addressed and the baud rate is set by means of two address switches on the front. Suitable for decentralized mounting on DIN TH35 rail according to IEC 60715 in electrical distribution cabinets.Connection with screw type terminal blocks
