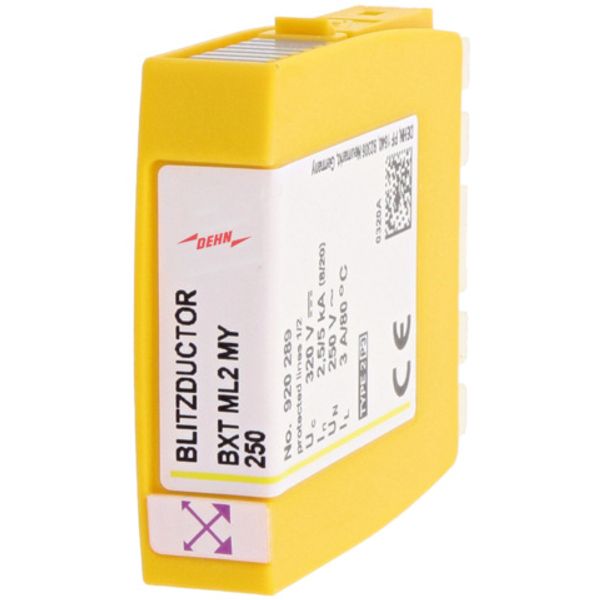

BLITZDUCTOR XT surge protection module
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
205,54 €
EAN: 4013364135840
MPN: 920289
Package: 1
Estimate delivery time at our warehouse (approx.):
2 weeks
Technical Information
| Item condition | New |
| Manufacture name | BLITZDUCTOR XT surge protection module |
| Brand | Dehn |
| Categories |
Surge Protection Devices (SPD)
|
| Country of origin | DE |
| Harmonized System Code | 8536 3010 00 |
| Nominal discharge surge current (8/20) | 5 kA |
| Nominal load current | 3 A |
| Voltage protection level core/core | 1100 V |
| Degree of protection (IP) | IP20 |
| Nominal voltage DC | 250 V |
Packing details
| Packing level 1 | 4013364135840, 4013364135840 |
Other Technical data
| Mounting method | On basic element |
| Connection 1 | Screw terminal |
| Number of conductors (without earthing) | 2 |
| Limiting frequency | 20 MHz |
| Voltage protection level core/earth | 1200 V |
| Pro-active thermo-control | Yes |

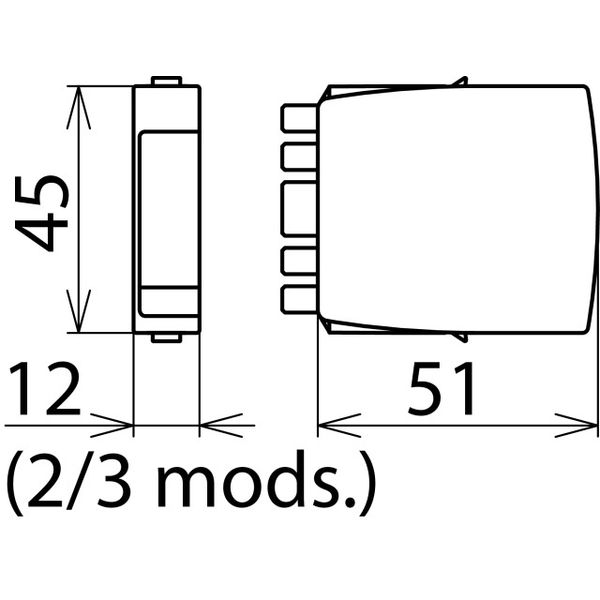

| Assembly width | 12 mm |
| Earthing via | Other |
Downloads
Description
Space-saving surge arrester module with LifeCheck feature for protecting two lines of stranded signal interfaces up to 250 V a.c. If LifeCheck detects thermal or electrical overload, the arrester has to be replaced. This status is indicated contactlessly by the DEHNrecord LC / SCM / MCM reader.
