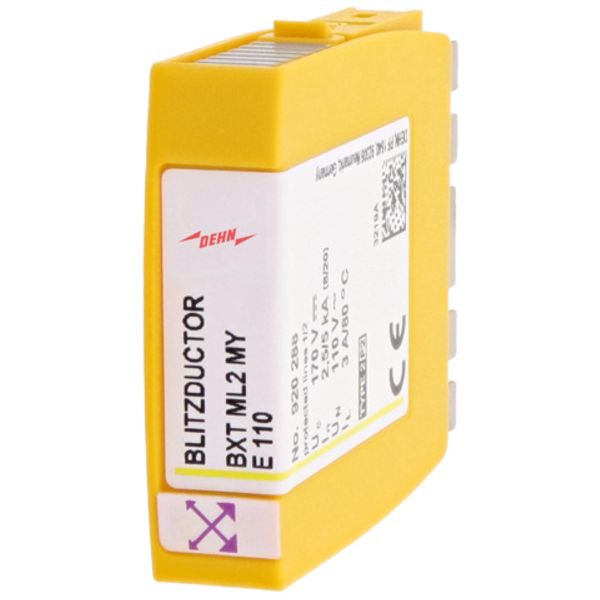

BLITZDUCTOR XT surge arrester module with Y circuit
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
228,60 €
EAN: 4013364137363
MPN: 920288
Package: 1
Estimate delivery time at our warehouse (approx.):
2 weeks
Technical Information
| Item condition | New |
| Manufacture name | BLITZDUCTOR XT surge arrester module with Y circuit |
| Brand | Dehn |
| Categories |
Surge Protection Devices (SPD)
|
| Country of origin | DE |
| Harmonized System Code | 8536 3010 00 |
| Nominal discharge surge current (8/20) | 5 kA |
| Nominal load current | 3 A |
| Voltage protection level core/core | 300 V |
| Degree of protection (IP) | IP20 |
| Nominal voltage DC | 110 V |
Packing details
| Packing level 1 | 4013364137363, 4013364137363 |
Other Technical data
| Mounting method | On basic element |
| Number of conductors (without earthing) | 2 |
| Limiting frequency | 4.5 MHz |
| Voltage protection level core/earth | 700 V |
| Pro-active thermo-control | Yes |

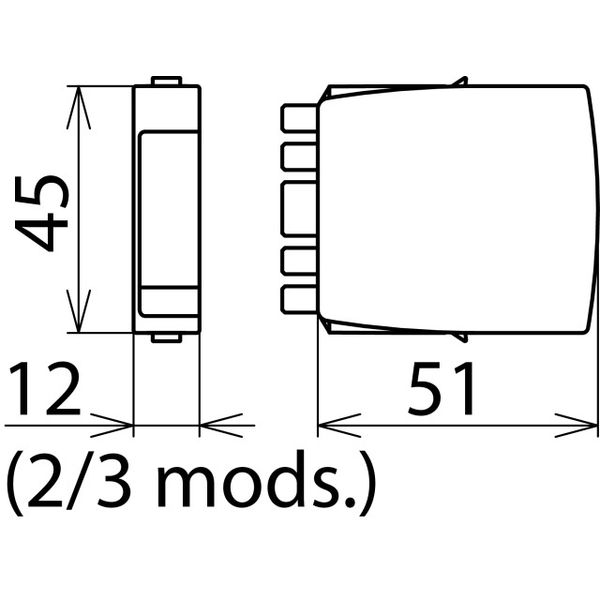

| Assembly width | 12 mm |
| Earthing via | Other |
Downloads
Description
Space-saving surge arrester module with LifeCheck feature for protecting two pairs of stranded signal interfaces. If LifeCheck detects thermal or electrical overload, the arrester has to be replaced. This status is indicated contactlessly by the DEHNrecord LC / SCM / MCM reader.
