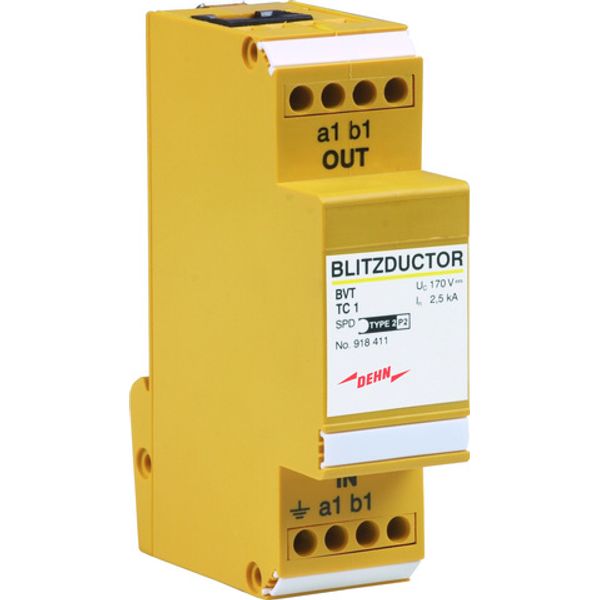

BLITZDUCTOR VT surge arrester
Order only
Price (excl. VAT):
121,60 €
EAN: 4013364093133
MPN: 918411
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | BLITZDUCTOR VT surge arrester |
| Brand | Dehn |
| Categories |
Surge Protection Devices (SPD)
|
| Country of origin* | RO |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 3010 00 |
| Nominal discharge surge current (8/20) | 5 kA |
| Nominal load current | 0.2 A |
| Voltage protection level core/core | 240 V |
| Max. continuous voltage DC | 170 V |
| Degree of protection (IP) | IP10 |
| Nominal voltage DC | 130 V |
Packing details
| Packing level 1 | 4013364093133, 4013364093133 |
Other Technical data
| Mounting method | DIN rail (top hat rail) 35 mm |
| Connection 1 | Terminal/RJ45 |
| Lightning impulse current (10/350 µs) | 1 kA |
| Number of conductors (without earthing) | 2 |
| Limiting frequency | 17 MHz |
| Voltage protection level core/earth | 600 V |

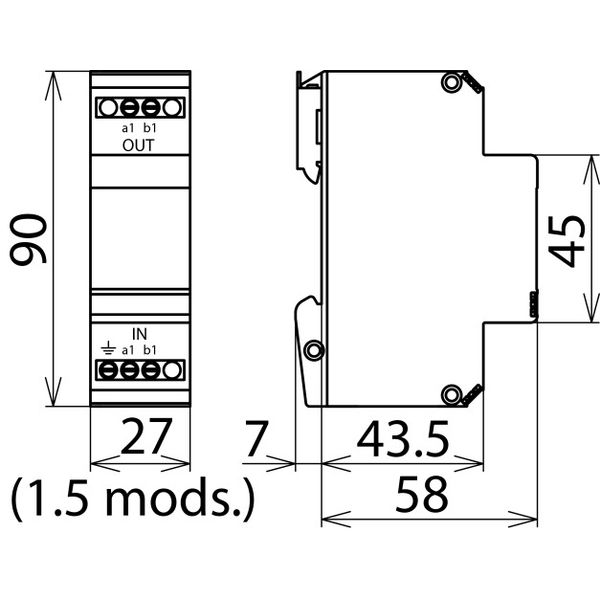

| Assembly width | 27 mm |
| Signal disconnection | No |
| Earthing via | Separate conductor |
Downloads
Description
Energy-coordinated and leakage-current-free surge arrester for a/b lines, ISDN Uk0 or ADSL with RJ45 plugs and additional screw terminals. Pinning of the RJ45 sockets is compatible with RJ11/12. The parallel screw terminals are more robust than the RJ45 sockets and increase the total nominal discharge current to 10 kA.
