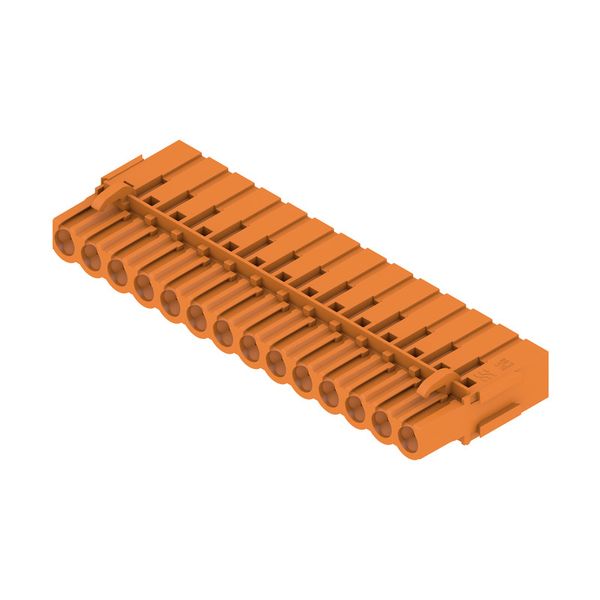

PCB plug-in connector, female plug, 5.08 mm, Number of poles: 14, 180°, Crimp connection, Clamping range, max. : 2.5 mm², Box
Order only
Minimal order quantity: 50
Price (excl. VAT):
1,67 €
Subtotal: 83,50 €
MOQ: 50
EAN: 4008190294601
MPN: 1649490000
Box: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | PCB plug-in connector, female plug, 5.08 mm, Number of poles: 14, 180°, Crimp connection, Clamping range, max. : 2.5 mm², Box |
| Brand | Weidmüller |
| Categories |
Cable Connectors
|
| Country of origin | DE |
| Harmonized System Code | 8538 9099 00 |
| Type of connection | Flexible PCB-connector |
| Rated voltage | 320 V |
| Number of poles | 14 |
| Contact type | Bus |
| Operating temperature | -50-100 °C |
| Rated surge voltage | 4 kV |
| Degree of protection (IP), mounted | Other |
| Angle contact/conductor connection | 180° (horizontal) |
| Rated current In | 18 A |
Packing details
| Packing level 1 | 4008190294601 |
Other Technical data
| Colour housing | Orange |
| Housing material | Plastic |
| Coating housing | Other |
| Inflammability class of insulation material according to with UL94 | V0 |
| Type of electric connection | Crimp connection |
| Material of contact surface | Tin |
| Over voltage category | III |
| Pollution degree | 2 |
| Connectable cable type | Tubular cable |
| Modular spacing connections | 5.08 mm |
| Number of plug-in contact rows | 1 |
| Modular spacing contacts | 5.08 mm |
| Connectable conductor cross section fine-strand without cable end sleeve | 0.5-2.5 mm² |
| With protective conductor | No |
| Material insulation body | Polybutylene terephthalate (PBT) |
| Material contact | Copper |
Description
Pluggable PCB connection with innovative connection technology for safe and intuitive handling.
Accessories
Order only
Weidmüller
PCB plug-in connector, Crimp contact, Contact, tinned, Max. clamping range : 0.35 mm²
0,171 €
Subtotal: 42,75 €
MOQ: 250
EAN: 4008190042905
MPN: 1604250000
Box: 1
Order only
Weidmüller
PCB plug-in connector, Accessories, Coding element, orange, Number of poles: 1
0,216 €
Subtotal: 21,60 €
MOQ: 100
EAN: 4008190048396
MPN: 1573010000
Box: 1
Order only
Weidmüller
PCB plug-in connector, Crimp contact, Contact, tinned, Max. clamping range : 2.5 mm²
0,168 €
Subtotal: 42,00 €
MOQ: 250
EAN: 4008190059071
MPN: 1567070000
Box: 1
Order only
Weidmüller
PCB plug-in connector, Accessories, Coding element, black, Number of poles: 1
0,216 €
Subtotal: 10,80 €
MOQ: 50
EAN: 4008190087142
MPN: 1545710000
Box: 1
Order only
Weidmüller
PCB plug-in connector, Crimp contact, Contact, tinned, Max. clamping range : 2.5 mm²
0,135 €
Subtotal: 337,50 €
MOQ: 2500
EAN: 4008190100414
MPN: 1480100000
Box: 1
Order only
Weidmüller
PCB plug-in connector, Crimp contact, Contact, tinned, Max. clamping range : 0.35 mm²
0,136 €
Subtotal: 408,00 €
MOQ: 3000
EAN: 4008190117498
MPN: 1604230000
Box: 1
Order only
Weidmüller
PCB plug-in connector, Accessories, Mounting block, orange, Number of poles: 0
0,367 €
Subtotal: 36,70 €
MOQ: 100
EAN: 4008190122164
MPN: 1593450000
Box: 1
Order only
Weidmüller
PCB plug-in connector, Crimp contact, Contact, tinned, Max. clamping range : 1 mm²
0,161 €
Subtotal: 40,25 €
MOQ: 250
EAN: 4008190166991
MPN: 1567060000
Box: 1
Order only
Weidmüller
PCB plug-in connector, Crimp contact, Contact, tinned, Max. clamping range : 1 mm²
0,134 €
Subtotal: 402,00 €
MOQ: 3000
EAN: 4008190179175
MPN: 1480000000
Box: 1
Order only
Weidmüller
PCB plug-in connector, Accessories, Mounting block, orange, Number of poles: 0
0,96 €
Subtotal: 19,20 €
MOQ: 20
EAN: 4008190182977
MPN: 1604120000
Box: 1
