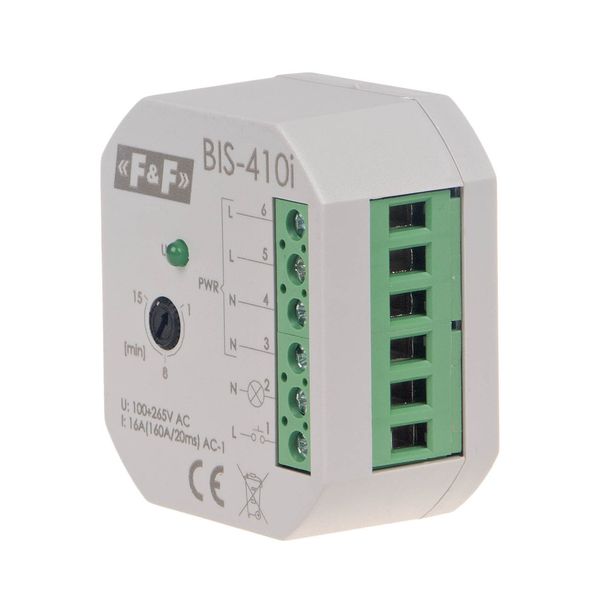

Bistable, flush-mounted relay with timer, for illuminated pushbuttons with inrush relay 160A/20ms; BIS-410-LED image 1

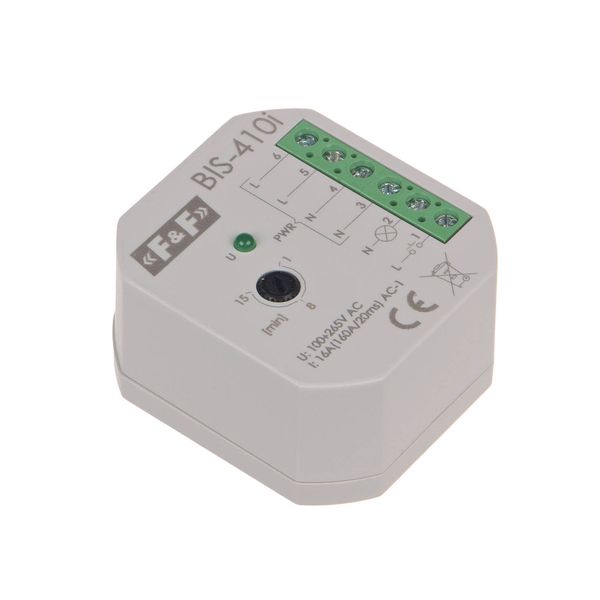

Bistable, flush-mounted relay with timer, for illuminated pushbuttons with inrush relay 160A/20ms; BIS-410-LED image 2
Bistable, flush-mounted relay with timer, for illuminated pushbuttons with inrush relay 160A/20ms; BIS-410-LED thumbnail 1
Bistable, flush-mounted relay with timer, for illuminated pushbuttons with inrush relay 160A/20ms; BIS-410-LED thumbnail 2
F&F

Bistable, flush-mounted relay with timer, for illuminated pushbuttons with inrush relay 160A/20ms; BIS-410-LED

In stock: No Vendor stock: No Minimal order quantity: 1
Price (excl. VAT):
21,90 €
This price is valid until 24.12.25
EAN: 5908312598312
MPN: BIS-410-LED
Package: 1
Estimate delivery time at our warehouse (approx.): 2-3 weeks

Technical Information

Item condition New
Manufacture name Bistable, flush-mounted relay with timer, for illuminated pushbuttons with inrush relay 160A/20ms; BIS-410-LED
Brand F&F
Categories Latching Relays
Country of origin PL
Harmonized System Code 8536 4900 00
Mounting method Flush mounted (plaster)
Function Electronic switch
Control voltage 1 100-230 V
Type of control voltage 1 AC
Voltage type of supply voltage AC
Supply voltage 165-265 V
Rated switch current 8 A

Packing details

Packing level 1 5908312598312

Other Technical data

Built-in depth 20 mm
Width in number of modular spacings 1
Frequency control voltage 1 50 Hz
Suitable for manual operation No
Max. switching current (cos phi = 0.6) 8 A
Max. incandescent lamp load 3000 W
Max. load fluorescent lamp 1500 VA
Max. load fluorescent lamp (Duo circuit) 1500 VA
Max. load fluorescent lamp (parallel compensated) 1500 VA

Downloads

Supplier's declaration for products having preferential origin status Deep link REACH Declaration RoHS Instructions for use

Description

Un=230V~ ; Io<16A ; montaż w puszce podtynkowej ?60 ; z wyłącznikiem czasowym 1÷15min Maksymalne obciążenie 16 A (160 A/20 ms). Przyłącze: zaciski śrubowe.
