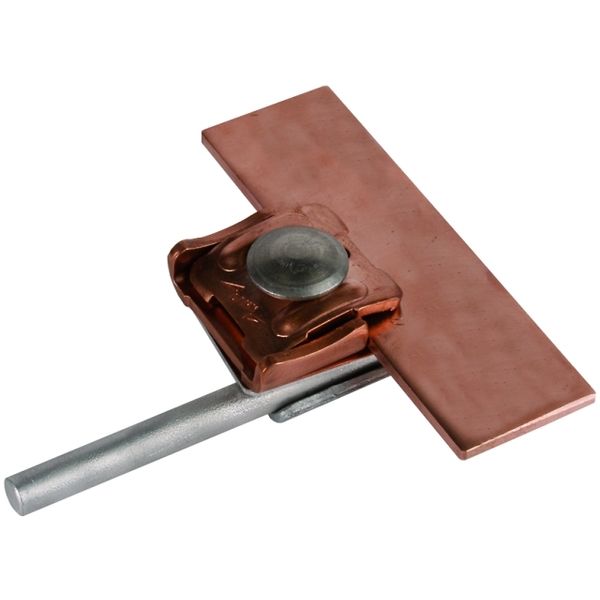

Bimetallic saddle clamp St/tZn-Cu clamping range 0.7-8mm for Rd 6-10mm

Order only

Price (excl. VAT):

10,92 €

This price is valid until 24.12.26

EAN: 4013364035331

MPN: 365117

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	Bimetallic saddle clamp St/tZn-Cu clamping range 0.7-8mm for Rd 6-10mm
Brand	Dehn
Categories	Earthing Products
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8538 9099 00
Surface protection	Hot-dip galvanized
Type of fastening screws	Flat round screw
Material	Copper/steel
Clamping range	0.7-8 mm
Suitable for diameter round conductor	6-10 mm

Packing details

Packing level 1

4013364035331, 4013364035331

Other Technical data

Type of connector

Rebate clamp

Downloads

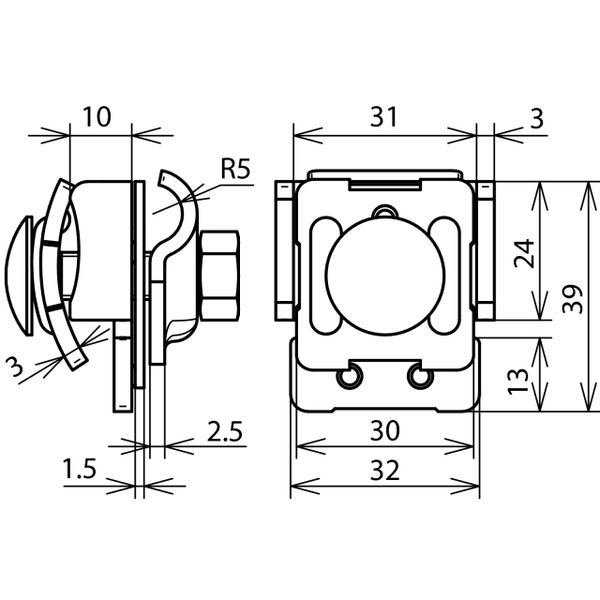

Product data sheet Dimensioned drawing Deep link REACH

Description

Seam clamp according to EN 62561-1, for connecting round conductors with seams. Bimetallic for Cu seams with intermediate plate (Cupal), longitudinal or cross conductor routing.
