BGP307 LED120-4S/740 I DM11 48/76S
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
678,63 €
Split box: 10,00 €
EAN: 8718696996324
MPN: 8718696996324
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | BGP307 LED120-4S/740 I DM11 48/76S |
| Brand | PHILIPS |
| Categories |
Street lighting
|
| Country of origin | NL |
| Harmonized System Code | 9405 4239 00 |

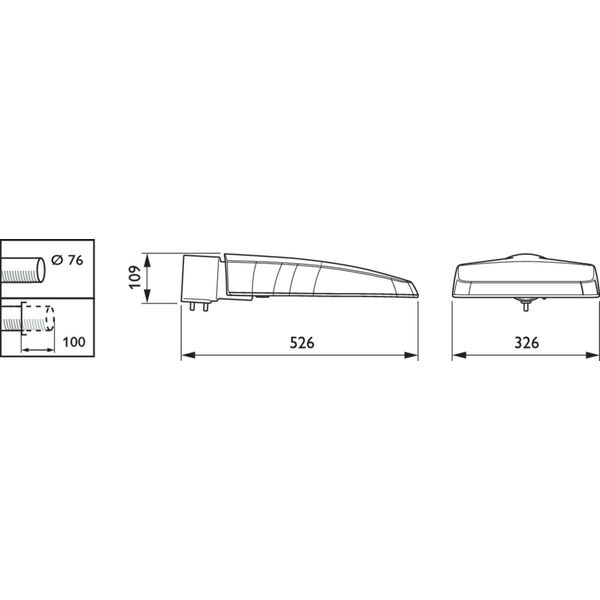

| Width | 330 mm |
| Colour rendering index CRI | 70-79 |
| Length | 525 mm |
| Height/depth | 110 mm |
| Lamp type | LED exchangeable |
| Impact strength | IK08 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP66 |
| Colour temperature | 4000 K |
| Max. system power | 74 W |
| Rated luminous flux according to IEC 62722-2-1 | 10200 lm |
| Luminaire efficacy | 138 lm/W |
Packing details
| Packing level 1 | 8718696996324 |
Other Technical data
| Mounting method | Side entry |
| Protection class | I |
| Lamp holder | Other |
| Conductor cross section | 2.5 mm² |
| Connection type | Push-in clamp |
| Colour housing | Grey |
| Surface protection | Powder coating |
| Voltage type | AC |
| Suitable for lamp power | 68 W |
| Type of control gear | LED operating device current-controlled |
| Cable length | 0 m |
| Diameter | 0 mm |
| Number of poles | 3 |
| Housing material | Aluminium |
| Material cover | Glass transparent |
| With connection cable | No |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Suitable for number of lamps | 2 |
| With control gear | Yes |
| Adjustable optics | No |
| Suitable for spigot size | 48-76 mm |
| Nominal current | 315-343 mA |
| Colour of light | White |
| Remote control | None |
| With radio control | No |
| With light regulation program control | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Type of wiring | Ending |
| Rated life time L70/B50 at 25 °C | 0 h |
| Rated life time L80/B10 at 25 °C | 100000 h |
| Rated life time L90/B10 at 25 °C | 0 h |
| Colour consistency (McAdam ellipse) | SDCM5 |
| Rated ambient temperature according to IEC62722-2-1 | -40-35 °C |
| LED nominal current at constant current | 621 mA |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | Yes |
| Light distributor | Other |
| Dimming DSI | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 97 % |
| Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq) | 95 % |
| Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) | 5 % |
| Failure rate at median useful life of 100,000 h at 25 °C ambient (tq) | 10 % |
| Exchangeable control gear | Yes |
| Power factor | 0.98 |
Downloads
Description
Met ClearWay gen2 profiteert je meteen van de voordelen van LED-technologie voor stedelijke verlichting. De tweede generatie ClearWay gen2-lijn bouwt voort op de sterke punten van zijn voorganger en is ontworpen om jouw totale eigendomskosten verder te verlagen. ClearWay gen2 verbetert aanzienlijk de belangrijkste aspecten van hoe straatverlichting beleefd wordt, vergeleken met conventionele verlichting. Dit betaalbare assortiment stedelijke ClearWay-lichtoplossingen is ideaal voor nieuwe installaties en bestaande systemen en combineert hoogwaardig licht met aanzienlijke energiebesparingen en lagere onderhoudskosten. Kortom, ClearWay betekent een goede lichtkwaliteit met alle extra voordelen van LED en een langere levensduur en is bovendien verpakt in een slanker en lichter ontwerp, wat de installatie vereenvoudigt.
