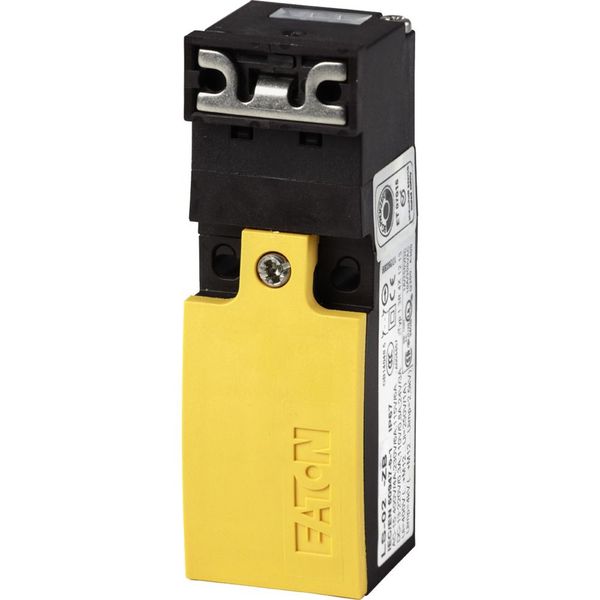

Rounded plunger, 1N/C+1N/O, snap-action contact, +actuator ZB, Cold Climate -40°C
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
33,39 €
EAN: 4015081716340
MPN: 177190
Package: 1
Box: 2
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Rounded plunger, 1N/C+1N/O, snap-action contact, +actuator ZB, Cold Climate -40°C |
| Brand | EATON |
| Categories |
Limit & Position Switches
|
| Country of origin | DE |
| Harmonized System Code | 8536 5080 00 |
| Switching function | Quick-break switch |
| Rated operation current Ie at AC-15, 230 V | 6 A |
| Rated operation current Ie at DC-13, 230 V | 0.3 A |
| Suitable for safety functions | Yes |
| With status indication | No |
| Type of control element | Plunger |
| Rated operation current Ie at AC-15, 24 V | 6 A |
| Rated operation current Ie at DC-13, 125 V | 0.8 A |
| Rated operation current Ie at DC-13, 24 V | 3 A |
Packing details
| Packing level 1 | 4015081716340 |
| Packing level 2 | 4015081965168 |
Other Technical data
| Housing material | Plastic |
| Coating housing | Other |
| Type of interface for safety communication | None |
| Type of electric connection | Cable entry metrical |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Construction type housing | Cuboid |
| Degree of protection (IP) | IP65 |
| Forced opening | Yes |
| Number of safety auxiliary contacts | 1 |
| Type of interface | None |
| Output electronic | No |
| Rated operation current Ie at AC-15, 125 V | 6 A |
| Width sensor | 31 mm |
| Diameter sensor | 0 mm |
| Height of sensor | 96 mm |
| Length of sensor | 33.5 mm |
| Switching function latching | No |
| Ambient temperature during operating | -40-70 °C |
| Number of contacts as normally closed contact | 1 |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
| Alignment of the control element | Other |
| Degree of protection (NEMA) | Other |
Description
Rounded plunger, Basic function: Position switches, Safety position switches, Part group reference: LS(4)…ZB, Product range: Safety position switches, Degree of Protection: IP65, Features: Complete unit, Ambient temperature: -40 - +70 °C, Snap-action contact: Yes, Description: With the actuator inserted, the N/O contact is open and the NC contact is closed., Contacts N/O = Normally open: 1 N/O, Contacts N/C = Normally closed: 1 NC, Notes: = safety function, by positive opening to IEC/EN 60947-5-1, Housing: Insulated material, Connection type: Screw terminal, Standards: IEC/EN 60947
