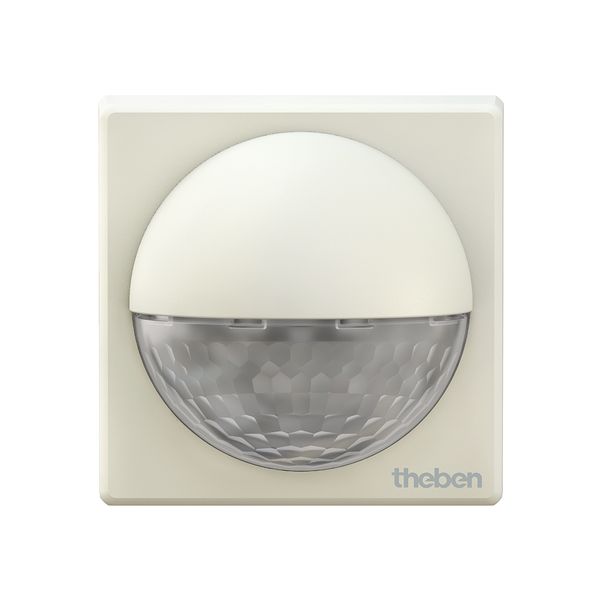

theLuxa R180 WH
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
41,02 €
EAN: 4003468100776
MPN: 1010200
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | theLuxa R180 WH |
| Brand | Theben |
| Categories |
Sensors
|
| Country of origin | CN |
| Harmonized System Code | 8536 5080 00 |
| Mounting method | Surface mounted (plaster) |
| Colour | White |
| Width | 82 mm |
| Model | Movement sensor |
| Height | 82 mm |
| Depth | 66 mm |
| Connection type | Screwed terminal |
| Frequency | 50-60 Hz |
| Max. transmission range frontally | 12 m |
| Max. switching power | 2300 W |
| Scan angle | 180 ° |
| Degree of protection (IP) | IP55 |
| Min. switch-on time | 2 s |
| Max. duty cycle | 30 min |
| Response value luminosity adjustable | Yes |
| Sensor type | Passive infrared |
Packing details
| Packing level 1 | 4003468100776, 4003468100776 |
| Packing level 2 | 4003468100776 |
Other Technical data
| Halogen free | No |
| Surface protection | Untreated |
| Creep-under protection | No |
| Voltage type | AC |
| Switch-off delay | 1800 s |
| With remote control | No |
| Staircase monitoring | No |
| Bridging switch | No |
| Suitable for wireless transmission | No |
| Material quality | Thermoplastic |
| Max. transmission range sideways | 6 m |
| Temperature | -25-45 °C |
| Max. starting current | 10 A |
| Material | Plastic |
| Response value sensitivity adjustable | No |
| Dim function with dimmer basic element | No |
| Response value luminosity | 2-200 lx |
| Suitable for C-load | No |
| Diameter detection range on floor | 12 m |
| Remote operation | No |
| HVAC-control | No |
| Constant light control | No |
| Substation input | No |
| RAL-number (similar) | 9010 |
| With signal unit | No |
| Teach-function for response value luminosity | Yes |
| Networkable | No |
| Forced switch off | No |
| Impact strength | IK04 |
| With alarm function | No |
| Transparent | No |
| Animal zone | No |
| Surface finishing | Matt |
| Detection angle horizontal | 0-180 ° |
| Suitable for wall mounting | Yes |
| Optimum mounting height | 2.5 m |
| With DALI interface | No |
| Forced switch on | No |
| Min. starting current | 0.1 A |
| Suitable for ceiling mounting | No |
| Anti-bacterial treatment | No |
Description
Bewegingsmelder voor wandmontage, veilige bescherming tegen manipulatie door robuust design van behuizing, onzichtbare aangebrachte instelelementen onder frontafdekking, nuldoorgangsschakeling, automatische lichtsturing afhankelijk van aanwezigheid en lichtsterkte, Teach-In-functie, mixlichtmeting, incl. schroeven en pluggen
