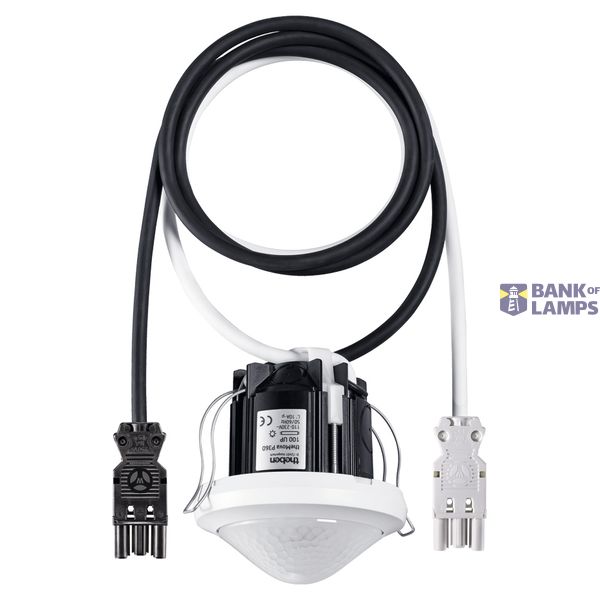

Bewegingsmelder Performance, 1 kanaal, inbouw, 360°, Ø24m, wit, GST st
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Bewegingsmelder Performance, 1 kanaal, inbouw, 360°, Ø24m, wit, GST st |
| Brand | Theben |
| Country of origin* | HU |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 5080 00 |
| ETIM | EC000133 |
| Mounting method | Flush mounted (plaster) |
| Colour | White |
| Width | 110 mm |
| Model | Movement sensor |
| Height | 83 mm |
| Depth | 110 mm |
| Connection type | Screwed terminal |
| Frequency | 50-60 Hz |
| Max. transmission range frontally | 12 m |
| Max. transmission range sideways | 12 m |
| Max. switching power | 2300 W |
| Scan angle | 360 ° |
| Degree of protection (IP) | IP40 |
| Min. switch-on time | 10 s |
| Max. duty cycle | 60 min |
| Response value luminosity adjustable | Yes |
| Optimum mounting height | 2.5 m |
| Sensor type | Passive infrared |
Packing details
| Packing level 1 | 4003468100752, 4003468100752 |
Other Technical data
| Halogen free | No |
| Surface protection | Untreated |
| Creep-under protection | No |
| Voltage type | AC |
| Switching-on delay | 0 s |
| Switch-off delay | 3600 s |
| Built-in depth | 37 mm |
| With remote control | No |
| Diameter | 110 mm |
| Built-in width | 48 mm |
| Built-in diameter | 48 mm |
| Staircase monitoring | Yes |
| Bridging switch | No |
| Suitable for wireless transmission | No |
| Material quality | Thermoplastic |
| Temperature | -15-50 °C |
| Max. starting current | 10 A |
| Material | Plastic |
| Response value sensitivity adjustable | Yes |
| Dim function with dimmer basic element | No |
| Response value luminosity | 5-3000 lx |
| Suitable for C-load | No |
| Diameter detection range on floor | 24 m |
| Remote operation | Yes |
| HVAC-control | No |
| Constant light control | No |
| Substation input | No |
| RAL-number (similar) | 9010 |
| With signal unit | No |
| Control current | 0 mA |
| Teach-function for response value luminosity | Yes |
| Networkable | No |
| Forced switch off | No |
| Impact strength | IK04 |
| With alarm function | No |
| Transparent | No |
| Animal zone | No |
| Surface finishing | Matt |
| Detection angle horizontal | 0-360 ° |
| Suitable for wall mounting | No |
| Number of switching zones | 0 |
| With DALI interface | No |
| Forced switch on | No |
| Min. starting current | 0.1 A |
| Min. depth of built-in installation box | 46 mm |
| Suitable for ceiling mounting | Yes |
| Anti-bacterial treatment | No |
Description
Passief Infrarood (PIR) bewegingsmelder voor plafondinbouwmontage, 1 kanaal licht, mixlichtmeting 5-3000 lx, rond 360°- detectiebereik bewegend max. 452 m2 (24 m) zittend 50 m2 (8 m) bij 3,5m montagehoogte, licht- uitschakelvertraging 30 s...60 min, helderheidswaarden via bus instelbaar, 1 HVAC-kanaal met inschakelvertraging 10 s...30 min / inactief, uitschakelvertraging 10 s...120 min, parameters via afstandsbediening instelbaar (SendoPro 868-A), testfunctie, beschermingsklasse IP 40, uitgevoerd met voorgeconfectioneerde GSTi18 aansluitsnoeren, 1 x in en 1 x uit, 1 meter kleur wit
