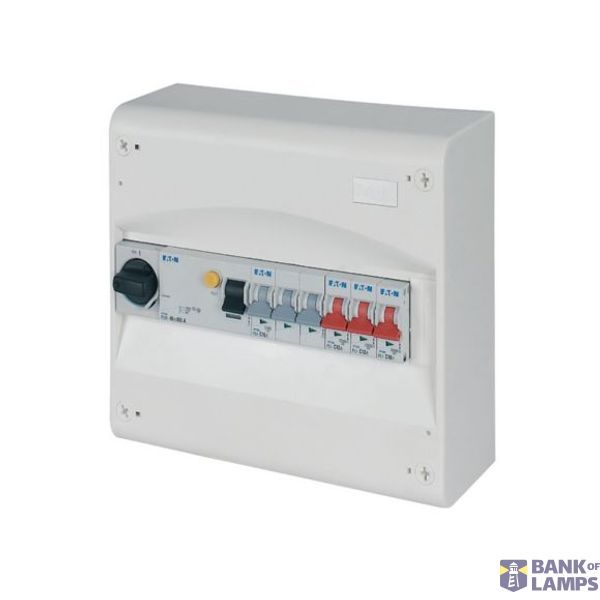

BC-A-1/13-PLI-S-K Eaton xComfort BC pre-wired distribution board
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | BC-A-1/13-PLI-S-K Eaton xComfort BC pre-wired distribution board |
| Brand | EATON |
| Country of origin* | CZ |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8538 1000 00 |
| ETIM | EC002288 |
| Mounting method | Surface mounted (plaster) |
| Protection | Miniature- / earth leakage circuit breaker |
| Degree of protection (IP) | IP30 |
Packing details
| Packing level 1 | 9010238045903 |
Other Technical data
| Width | 260 mm |
| Height | 230 mm |
| Depth | 110 mm |
| Lockable | No |
| With socket outlet | No |
| Number of phases | 1 |
| Extension possible | No |
| With transparent cover | No |
| Over voltage protection | No |
| Housing material | Plastic |
| Width in number of modular spacings | 13 |
| Built-in depth | 46 mm |
| Number of earth leakage circuit breakers | 0 |
| Number of earth leakage switches 300 mA | 0 |
| Number of earth leakage switches 30 mA | 1 |
| Number of direct groups | 0 |
| Number of groups behind earth leakage switch | 4 |
| Number of light groups | 3 |
| Number of poles main switch | 2 |
| With bell transformer | No |
| Cooker group | None |
| Cooker group suitable as power current group | No |
| Total number of groups | 4 |
| Main switch rated current | 63 A |
| Suitable for data | No |
| Protection main switch | Yes |
| Protection incoming RCD | Yes |
| Protection high integrity | No |
| Protection split load | No |
| Protection dual RCD | No |
| Number of outgoing ways | 4 |
| Number of arc fault detection devices AFDD | 0 |
| With meter | No |
Description
Surface-mount compact distribution board, protection Class I, equipment supplied: enclosure, device carrier, neutral and protective conductor terminal with terminal carrier, 1x PLI 16A 3pol, 3x PLI 10A 1pol, 1x PFGM 30mA, 1x Z7-KS3.40, installation instructions, imprintable sheet
