BBP341 LED540/WW 6W 20D 100-240V
In stock: No
Vendor stock: No
Minimal order quantity: 1
Discontinued
Price (excl. VAT):
102,41 €
per pcs
Split box: 10,00 €
EAN: 8719514948259
MPN: 911401755342
Package: 1
Box: 8
Pallet: 8
Estimate delivery time at our warehouse (approx.):
3-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | BBP341 LED540/WW 6W 20D 100-240V |
| Brand | PHILIPS |
| Categories |
In-ground luminaires
|
| Country of origin | CN |
| Harmonized System Code | 9405 4239 00 |
| Colour rendering index CRI | 70-79 |
| Height/depth | 145 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK10 |
| Nominal voltage | 100-240 V |
| Degree of protection (IP) | IP67 |
| Beam angle | Narrow beam 11 - 20° |
| Colour temperature | 3000 K |
| Max. system power | 6 W |
| Rated luminous flux according to IEC 62722-2-1 | 540 lm |
Packing details
| Packing level 1 | 8719514948259 |
| Packing level 2 | 8719514948259, 8719514948259 |
Other Technical data
| Protection class | I |

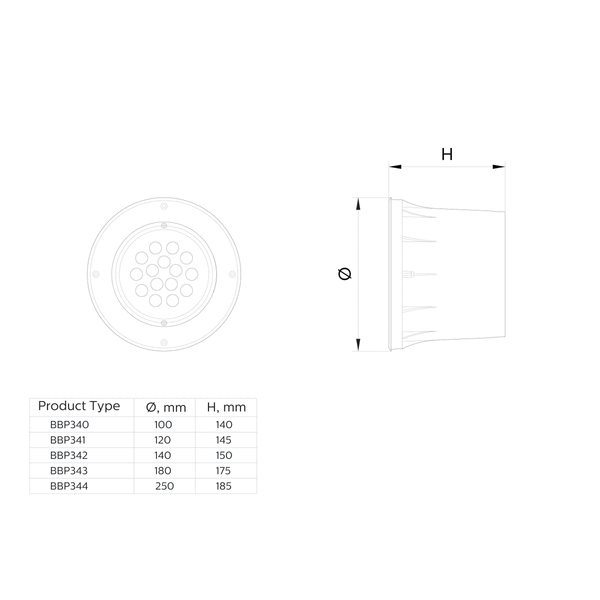

| Outer diameter | 120 mm |
| Lamp holder | None |
| Conductor cross section | 1 mm² |
| Connection type | Other |
| Colour housing | Other |
| Voltage type | AC |
| Suitable for lamp power | 0 W |
| Type of control gear | Electronic transformer |
| Adjustable | No |
| Number of poles | 3 |
| Housing material | Aluminium |
| Electrical connection with connector system | No |
| Light sharing | Asymmetric |
| Material cover | Glass transparent |
| Over rollable | No |
| Max. surface temperature | 80 °C |
| With light source | No |
| Max. load | 2000 kg |
| With control gear | Yes |
| Colour of light | White |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Type of wiring | Through wiring included |
| LED nominal current at constant current | 0 mA |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | Yes |
| Light distributor | Diffuser lens/optic/panel |
| Dimming DSI | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Colour temperature adjustable | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | No |
| Exchangeable control gear | No |
| Housing material quality | Other |
| Power factor | 0.9 |
Downloads
Description
Rodzina produktów UNIIn-ground obejmuje oprawy z różnymi opcjami mocy, kąta rozsyłu światła, i temperatury barwowej. Kompaktowa i solidna konstrukcja w nierdzewnej obudowie z odlewanego aluminium oraz z wodoszczelnymi złączami IP68, zapewnia wysoką trwałość i niezawodność. Wodoszczelne złącze ułatwia także instalację. Oprócz wysokiej jakości białego i kolorowego światła, dostępne są także wersje RGB z wbudowanym dekoderem DMX512
