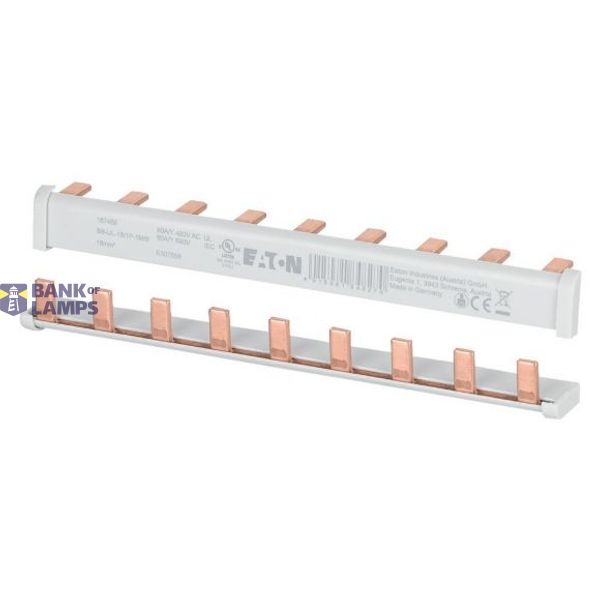

BB-UL-18/1P-1M/9 Eaton Distribution parts

Name: BB-UL-18/1P-1M/9 Eaton Distribution parts
Brand: EATON
Availability: PreOrder

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	BB-UL-18/1P-1M/9 Eaton Distribution parts
Brand	EATON
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 9095 00
ETIM	EC000215
Insulated	Yes
Rated permanent current Iu	80 A
Number of poles	1

Colour	Other
Number of phases	1
Cross section	18 mm²
Length	166 mm
Conditioned rated short-circuit current Iq	10 kA
Width in number of modular spacings	9
Rated surge voltage	9.5 kV
Type of electric connection	Pin
Rated short-time withstand current lcw	10 kA
Suitable for devices with auxiliary switch	No
Suitable for devices with N-conductor	No
Suitable for number of devices	9
Max. rated operation voltage Ue	690 V
Module width	17.8 mm

Block busbar for FAZ, type conforms to UL508, EN/IEC 60947-2
