Battery distributor with 1xHRC 00, 1x battery 1xPV-inverter

Name: Battery distributor with 1xHRC 00, 1x battery 1xPV-inverter
Brand: HENSEL
Availability: PreOrder

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Battery distributor with 1xHRC 00, 1x battery 1xPV-inverter
Brand	HENSEL
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8537 1098 00
ETIM	EC000100
Rated current	125 A
Type of fuse	Knife blade fuse (NH)
Housing material	Plastic
Degree of protection (IP)	IP65

Packing details

Packing level 1

4012591116608

Other Technical data

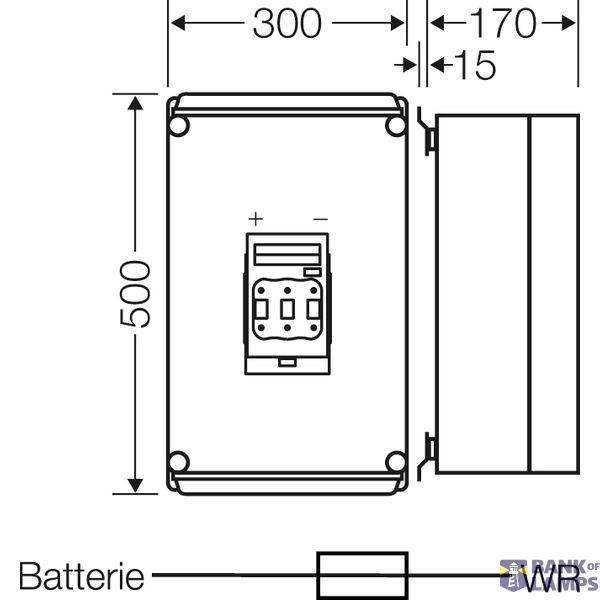

Width	300 mm
Height	490 mm
Depth	170 mm
Extension possible	No
With transparent cover	Yes
Number of groups	1

Description

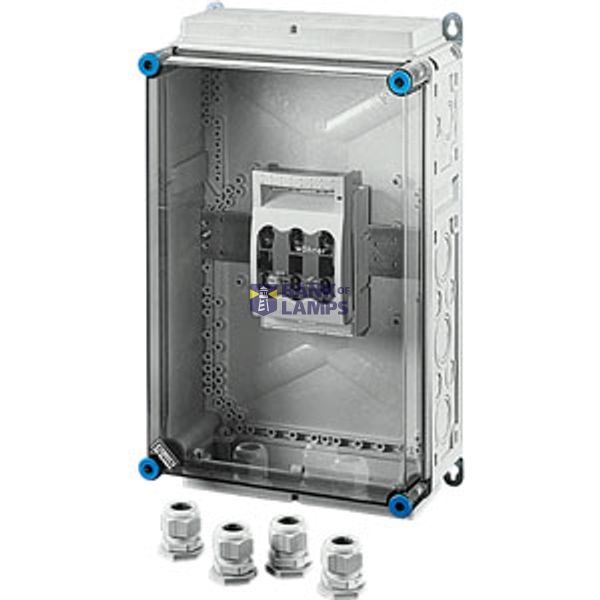

Battery distributor according to IEC 61439 positioned between battery and inverter, completely assembled and wired ready for connection. Enclosures made of high quality thermoplastics are totally insulated, degree of protection IP 65. Battery distributors are used for fuse protection of inverter inputs. Suitable for protected outdoor installation, UV-resistant. Wall fixing with external brackets made of stainless steel. Battery distributor with HRC fuse switch disconnector, 2-pole. 1 x battery and 1 x PV inverter on HRC 00. Lid fasteners for tool operation.
