basicDIM ILD G2 HC TEC-GP SR IP54 - TEC-GP with sensor and DALI control unit

Name: basicDIM ILD G2 HC TEC-GP SR IP54 - TEC-GP with sensor and DALI control unit
Brand: Zumtobel
Price: 722.500 EUR
Availability: PreOrder

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

722,50 €

This price is valid until 24.12.25

EAN: 9010757198111

MPN: 22172584

Package: 1

Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition	New
Manufacture name	basicDIM ILD G2 HC TEC-GP SR IP54 - TEC-GP with sensor and DALI control unit
Brand	Zumtobel
Categories	Luminaire accessories
Country of origin	AT
Harmonized System Code	9405 9900 00
Type of accessory/spare part	Movement sensor

Packing details

Packing level 1

9010757198111, 9010757198111

Downloads

Deep link REACH Declaration DOC CE (Declaration of conformity CE) Declaration RoHS Sales brochure

Description

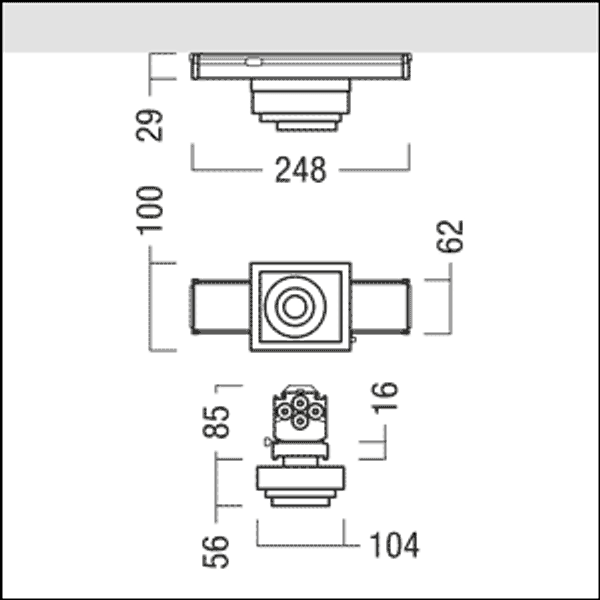

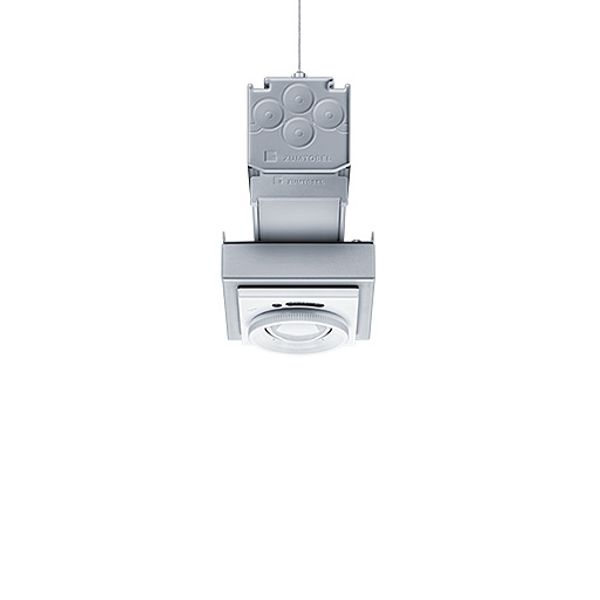

The TECTON module with integrated basicDIM ILG G2 Wireless Sensor and DALI control unit is ideal for industry, logistics, offices and education. The sheet steel adapter, pre-painted in polyester lacquer finish in silver, has IP54 protection rating for splash water protection. The basicDIM ILD G2 MC TEC-GP IP54 set consists of a PIR sensor (height 5-8 m) with integrated DALI control module and 2 DALI bus supplies with 126 mA free power for additional sensors and luminaires. The module controls DALI luminaires via a broadcast signal without individual addressing and can be expanded with up to 8 additional sensors (MSENS TEC-GP). Light control is via the light sensor value of the basicDIM ILD G2 module. With activated motion detection and daylight-dependent light control, the system is ready for immediate use. An optional IR remote control (article no. 28003484) enables all the main parameters to be set. Further details can be found in the data sheet for the basicDIM ILD G2 sensor (article no. 28004639). The module cannot be combined with other DALI control units or basicDIM ILD G2 modules. Temperature range from -20°C to +50°C; protection rating: IP54; dimensions: 248 x 60 x 16 mm; weight: 0.55 kg.
