Base for socket outlet with side earthing, flush-mounting depth 28.5 m
Order only
Price (excl. VAT):
3,72 €
EAN: 5413736201187
MPN: 170-34200
Package: 1
Estimate delivery time to our warehouse: 4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Base for socket outlet with side earthing, flush-mounting depth 28.5 m |
| Brand | Niko |
| Categories |
Sockets
|
| Country of origin* | BE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 6990 00 |
| Nominal current | 16 A |
| Nominal voltage | 250 V |
| Mounting method | Flush mounted (plaster) |
| Model | Protective contact (type F) |
| Halogen free | Yes |
| Number of units | 1 |
| Lockable | No |
| With hinged lid | No |
| Connection type | Screwed terminal |
| With signal lamp | No |
| Number of phases | 2 |
| With enhanced contact protection | Yes |
| With on/off switch | No |
| Protective contact | Yes |
| Label space/information surface | No |
| Eject-mechanism | No |
| Rotated central insert | No |
| Over voltage protection | No |
| Fault current protection | No |
| Special power supply | No special power supply |
| Insulated mounting | No |
| Material | Plastic |
| Type of fastening | Mounting with screw |
| Imprint/indication | None |
| Impact strength | IK06 |
| Transparent | No |
| With miniature fuse | No |
| With loop through function | No |
| Suitable for degree of protection (IP) | IP41 |
| Device width | 73 mm |
| Device height | 73 mm |
| Device depth | 45 mm |
| Number of socket outlets switchable | 1 |
| With function lighting | No |
| With orientation lighting | No |
| With built-in USB power supply | No |
| IFTTT support available | No |
| Number of active pins (round) | 0 |
| Protective earth pin round | No |
| Min. depth of built-in installation box | 28.5 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Metallic colour | No |
| Anti-bacterial treatment | No |
| For heavy conditions according to VDE | Yes |
Packing details
| Packing level 1 | 5413736201187 |
Downloads
Description

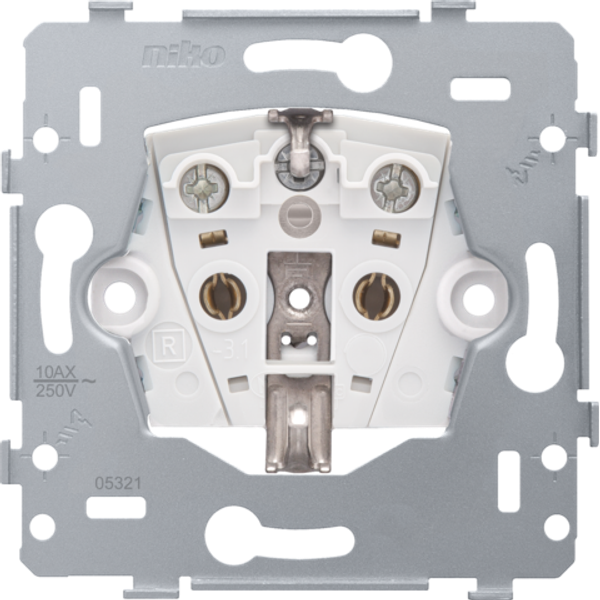

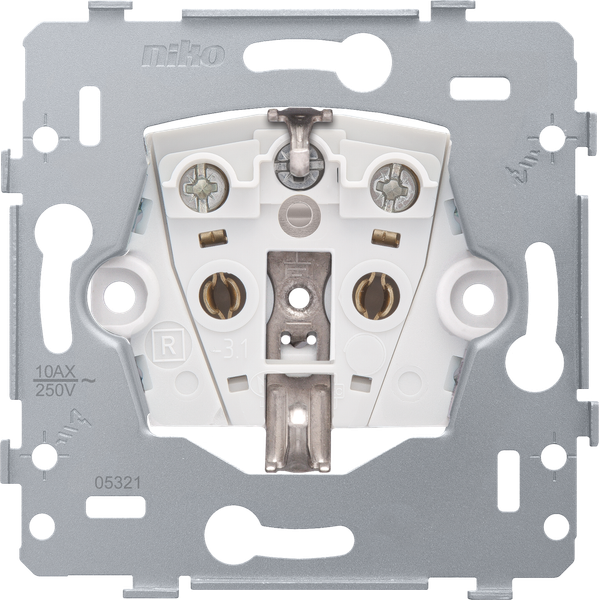

Mechanism for a socket outlet with side earthing, screw fixing and shutters. – the sockets are fitted with cage clamps with permanent screws with combination screwheads (Pz2 or slot 1 x 5,5 mm) – every screw is provided with a screwdriver slot that prevents the screwdriver from sliding off the screwhead. This socket outlet has a flush-mounting depth of 28.5 mm. A finishing set and faceplate in the colour of your choice must be ordered separately. This article is protected by at least one patent (application). For more info on patents, see www.niko.eu/innovation.
