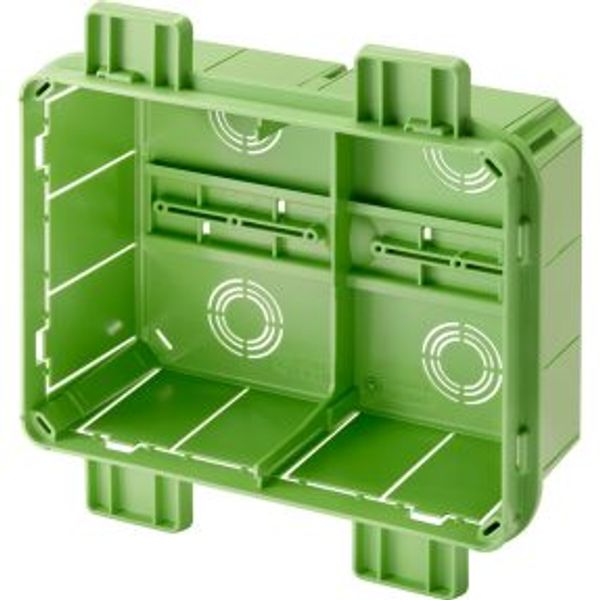

BACK BOX FOR 48 PT DIN FLUSH MOUNTING JUNCTION BOXES 392X152X75 - FOR PLASTERBOARD WALLS
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
8,42 €
EAN: 8034035087769
MPN: GW48118PM
Package: 1
Box: 10
Pallet: 300
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | BACK BOX FOR 48 PT DIN FLUSH MOUNTING JUNCTION BOXES 392X152X75 - FOR PLASTERBOARD WALLS |
| Brand | GEWISS |
| Categories |
Flush Mounted Junction Boxes
|
| Harmonized System Code | 8538 9099 00 |
| Mounting method | Hollow ceiling |
| Model | Other |
| Shape | Rectangular |
| Equipped with | Mounting plate |
| Connectable | Yes |
| Degree of protection (IP) | IP40 |
| Provided with revolving ring | No |
Packing details
| Packing level 1 | 8034035087769 |
| Packing level 2 | 8034035087769 |
| Packing level 3 | 8034035087769 |
Other Technical data
| Colour | Green |
| Width | 152 mm |
| Halogen free | Yes |
| Surface protection | Untreated |
| Diameter | 0 mm |
| Construction type | Cable junction box |
| Inner depth | 73 mm |
| Length | 392 mm |
| Sealable | No |
| Circuit integrity | None |
| Material | Plastic |
| Number of inlets | 30 |
| Cover attachment | Screwed |
| For number of electric fittings | 0 |
| Luminaire hook mounting | No |
| Max. conductor cross section | 0 mm² |
| With screening | No |
| With nail lugs | No |
| With screws | Yes |
| Air tight | No |
| Depth | 75 mm |
| For tube diameter | Other |
| Inlet from the rear | Yes |
| Pipe locking | No |
| Special application | None |
| Clamp position fixed | No |
| Number of poles of the clamp | 0 |
| Nozzle | None |
| Housing feed-through by seal membrane | No |
| Housing feed-through by nozzle | No |
| Housing feed-through by step membrane | No |
| Pipe locking optional | No |
| Number of included spouts | 0 |
| Cover model | Mounting cover |
| Housing feed-through by break-out opening | Yes |
| Transparent cover | No |
Description
GREEN WALL range Flush-mounting system for plasterboard walls - The most complete system of containers for lightweight and plasterboard walls; Gewiss patented solutions. Made with halogen-free technopolymer and GWT 850°C. The range included enclosures and distribution boards up to 72 M; 48 PTDIN GREENWALL range junction boxes with integrated DIN rail on the back plate, compliant with CEI 23-49, ideal for the pre-arrangement and installation of domotic devices; boxes for domestic ranges and boxes for interlocked switched socket-outlets.
